Description

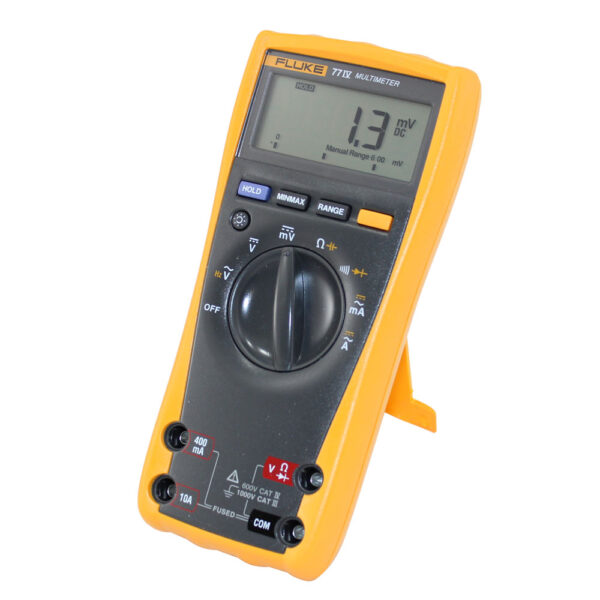

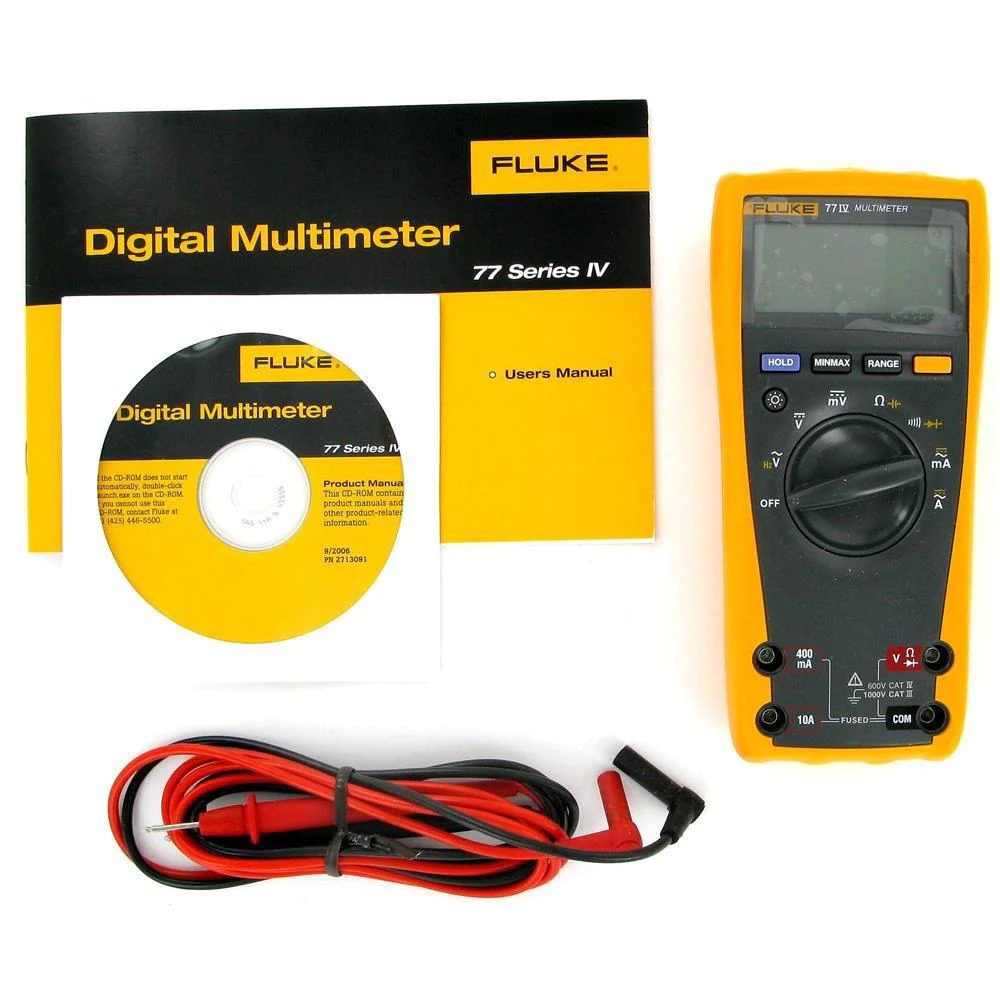

Multimeter digital Fluke 77 IV memiliki fitur yang diperlukan untuk memperbaiki sebagian besar masalah kelistrikan dan elektronik. Meteran ini mudah digunakan dan memiliki peningkatan yang signifikan dibandingkan Seri 70 asli Fluke dengan lebih banyak fungsi pengukuran, kesesuaian dengan standar keselamatan terbaru, dan tampilan yang jauh lebih besar sehingga lebih mudah dilihat.
FITUR Fluke 77-IV
- Rentang pengukuran lebar 1000 V
- Pengukuran AC respons rata-rata
- akurasi 0,3%.
- 10 Amps terus menerus (20 A selama 30 detik)
- Frekuensi dan kapasitansi
- Perlawanan dan kontinuitas
SPESIFIKASI Fluke 77-IV
| Specifications | ||
| Voltage DC | Range | 6.000 V – 1000 V |
| Best accuracy | ±(0.3% + 1) | |
| Best resolution | 0.1 mV | |
| Voltage AC | Range | 600.0 mV – 1000V |
| Best accuracy | ±(2.0% + 2) | |
| Best resolution | 1.0 mV | |
| Amps AC | Range | 60.00 mA – 10 A |
| Best accuracy | 2.5% + 2 | |
| Best resolution | 0.01 mA | |
| Amps DC | Range | 60.00 mA – 10A |
| Best accuracy | 1.5% + 2 | |
| Best resolution | 0.01 mA | |
| Resistance | Range | 600.0 Ω – 50 MΩ |
| Best accuracy | ±(0.5% + 1) | |
| Best resolution | 0.1 Ω | |
| Capacitance | Range | 1nF – 9,999 μF |
| Best accuracy | ±(1.2% + 2) | |
| Best resolution | 1 nF | |
| Frequency | Range | 99.99Hz – 99.99kHz |
| Best accuracy | ±(0.1% + 1) | |
| Best resolution | 0.01 Hz | |
| Safety | ANSI / ISA S82.02.01, CSA C22.2–1010.1, IEC 61010 to 1000 V Measurement Category III, 600 V Measurement Category IV | |
| Certifications | CSA, TÃœV (EN61010), Î , (N10140) | |
| General Specifications | ||
| Maximum voltage between any terminal and earth ground | 1000 V | |
| Surge protection | 8 kV peak per IEC 61010 | |
| Ω Fuse for mA inputs | 440 mA, 1000 V FAST Fuse | |
| Ω Fuse for A inputs | 11 A, 1000 V FAST Fuse | |
| Display | Digital | 6000 counts, updates 4/sec |
| Bar graph | 33 segments, updates 32/sec | |
| Frequency | 10,000 counts | |
| Capacitance | 1,000 counts | |
| Altitude | Operating | 2,000 meters |
| Storage | 12,000 meters | |
| Temperature | Operating | -10°C to + 50°C |
| Storage | -40°C to + 60°C | |
| Temperature coefficient | 0.1 x (specified accuracy / °C (< 18°C or > 28°C) | |
| Electromagnetic compatibility (EN 61326–1:1997) |
In an RF field of 3 V/M, accuracy = specified accuracy except in temperature: specified accuracy ±5°C (9°F) |
|
| Relative humidity (maximum non-condensing) |
90% to 35°C 75% to 40°C 45% to 50°C |
|
| Battery life | 400 hours typical (alkaline) | |
| Size (H x W x L) | 4.3 x 9 x 18.5 cm | |
| Weight | 420 g | |
