Description

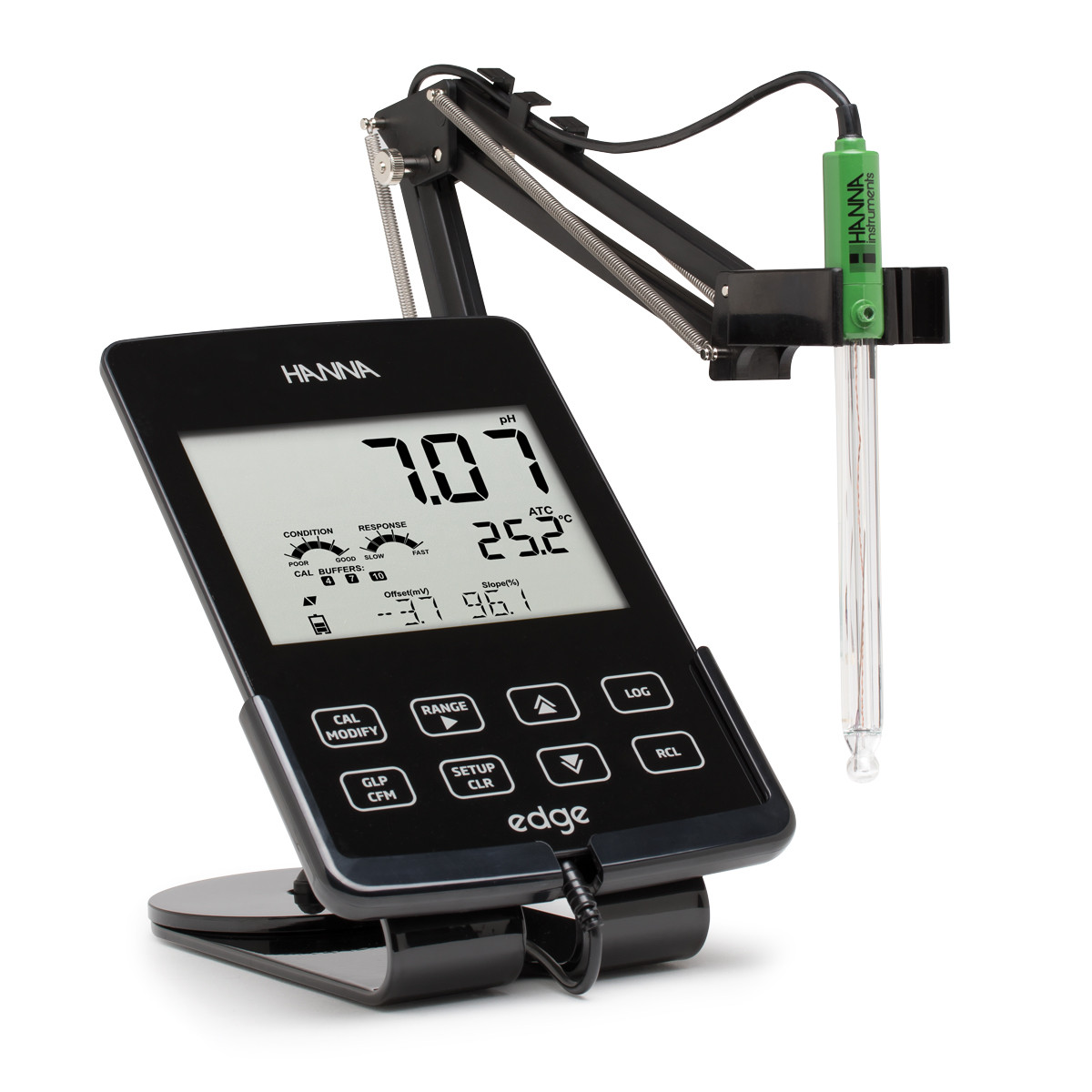

Hanna Instruments HI2020 adalah alat ukur digital multiparameter profesional yang digunakan untuk mengukur berbagai parameter kualitas air dan larutan secara akurat dalam satu perangkat. Alat ini dikembangkan oleh Hanna Instruments sebagai solusi modern untuk kebutuhan laboratorium, industri, penelitian, dan pengujian lingkungan yang memerlukan pengukuran cepat, praktis, dan presisi tinggi.
Hanna HI2020 termasuk dalam seri edgeÂź yang memiliki desain modern, tipis, dan elegan dibanding alat ukur laboratorium konvensional. Perangkat ini dirancang agar mudah digunakan baik sebagai alat meja laboratorium (bench meter), alat portable, maupun alat yang dapat dipasang di dinding sesuai kebutuhan pengguna.
FITUR Hanna HI2020
- Pengukuran multiparameter dalam satu alat
- Mengukur pH, ORP/mV, EC, TDS, salinitas, DO, dan temperatur
- Desain ultra slim dan modern
- Layar LCD digital besar dan mudah dibaca
- Teknologi digital smart electrode
- Pengenalan sensor otomatis
- Kalibrasi multi titik untuk akurasi tinggi
- Fitur CAL Checkâą dan sensor diagnostics
- Data logging dan penyimpanan data internal
- Koneksi USB untuk transfer data
- Dapat digunakan sebagai bench meter, portable, dan wall mounted
- Respon pengukuran cepat dan stabil
- Interface sederhana dan mudah dioperasikan
- Baterai rechargeable dan adaptor listrik
- Cocok untuk laboratorium, industri, penelitian, dan pengujian kualitas air
SPESIFIKASI Hanna HI2020
| SKU | HI2020-01 |
| Name | Âź Multiparameter pH Meter â HI2020 |
| pH Range | -2.000 to 16.000 pH, -2.00 to 16.00 pH, ±1000 mV |
| pH Resolution | 0.001 pH, 0.01 pH, 0.1 mV |
| pH Accuracy | ±0.002 pH, ±0.01 pH, ±0.2 mV |
| pH Calibration | 5 points (Standard mode) 1.68, 4.01 (3.00â ), 6.86, 7.01, 9.18, 10.01, 12.45, and two custom buffers; 3 points (Basic mode) 4.01; 6.86; 7.01; 9.18; 10.01 |
| pH Temperature Compensation | ATC: -5.0 to 100.0ÂșC; 23.0 to 212.0°F* |
| pH CAL Check (electrode diagnostics) | Glass and reference junction diagnostics ( HI 11311 & HI 12301 only), out of calibration range , probe condition, response time |
| EC Range | 0.00 to 29.99 ”S/cm, 30.0 to 299.9 ”S/cm, 300 to 2999 ”S/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm (absolute EC)** |
| EC Resolution | 0.01 ”S/cm, 0.1 ”S/cm, 1 ”S/cm, 0.01 mS/cm, 0.1 mS/cm |
| EC Accuracy | ±1% of reading (±0.05 ”S/cm or 1 digit, whichever is greater) |
| EC Calibration | 1 point offset calibration (0.00 ”S/cm in air), 1 point slope calibration in EC standard 84 ”S/cm, 1413 ”S/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 111.8 mS/cm |
| TDS Range | 0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150 to 1499 ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L (absolute TDS)**, with 0.80 conversion factor |
| TDS Resolution | 0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L |
| TDS Accuracy | ±1% of reading (±0.03 ppm or 1 digit, whichever is greater) |
| TDS Calibration | through EC calibration |
| EC/TDS Temperature Compensation | ATC (0.0 to 100.0ÂșC; 32.0 to 212.0 °F), NoTC |
| EC to TDS Conversion Factor | 0.40 to 0.80 |
| Salinity (% NaCl) Range | 0.0 to 400.0% NaCl*** |
| Salinity (% NaCl) Resolution | 0.1% NaCl |
| Salinity (% NaCl) Accuracy | ±1% of reading (@25ÂșC/77ÂșF) |
| Salinity (% NaCl) Calibration | 1 point with HI 7037L 100% NaCl sea water standard |
| Salinity (PSU) Range | 2.00 to 42.00 PSU*** |
| Salinity (PSU) Resolution | 0.01 PSU |
| Salinity (PSU) Accuracy | ±1% of reading (@25ÂșC/77ÂșF) |
| Salinity (PSU) Calibration | through EC calibration |
| Salinity Range | 0.0 to 80.0 g/L*** |
| Salinity Resolution (ppt) | 0.01 g/L |
| Salinity Accuracy (ppt) | ±1% of reading (@25ÂșC/77ÂșF) |
| Salinity Calibration (ppt) | through EC calibration |
| Dissolved Oxygen Range | 0.00 to 45.00 ppm (mg/L), 0.0 up to 300.0% saturation |
| Dissolved Oxygen Resolution | 0.01 ppm, 0.1% saturation |
| Dissolved Oxygen Accuracy | ±1 digit, ±1.5% of reading |
| Dissolved Oxygen Calibration | one or two points at 0% (HI 7040 solution) and 100% (in air) |
| Dissolved Oxygen Temperature Compensation | ATC: 0 to 50 ÂșC; 32.0 to 122.0 °F |
| Salinity Compensation | 0 to 40 g/L (with 1 g/L resolution) |
| Altitude Compensation | -500 to 4000 m (with 100 m resolution) |
| Temperature Range | -20.0 to 120.0 ÂșC, -4.0 to 248.0 °F |
| Temperature Resolution | 0.1 °C, 0.1 °F |
| Temperature Accuracy | ±0.5 °C, ±0.9 °F |
| pH Electrode | HI11310 pH electrode (included) |
| Logging Type | Manual log-on-demand (Max. 200 logs); Manual log-on-stability (Max. 200 logs); Interval logging *** (Max. 600 samples; 100 lots) |
| Logging Memory | up to 1000*** records |
| Connectivity | 1 micro USB port for charging and PC connectivity, 1 USB port for storage |
| Battery Type/Life | Built-in rechargeable battery with up to 8 hours of continuous use |
| Power Supply | 5 VDC adapter (included) |
| Environment | 0 to 50°C (32 to 122°F), RH max 95% non-condensing |
| Dimensions | 202 x 140 x 12.7mm (8â x 5.5â x 0.5â) |
| Weight | 250 g (8.82 oz) |
