Description

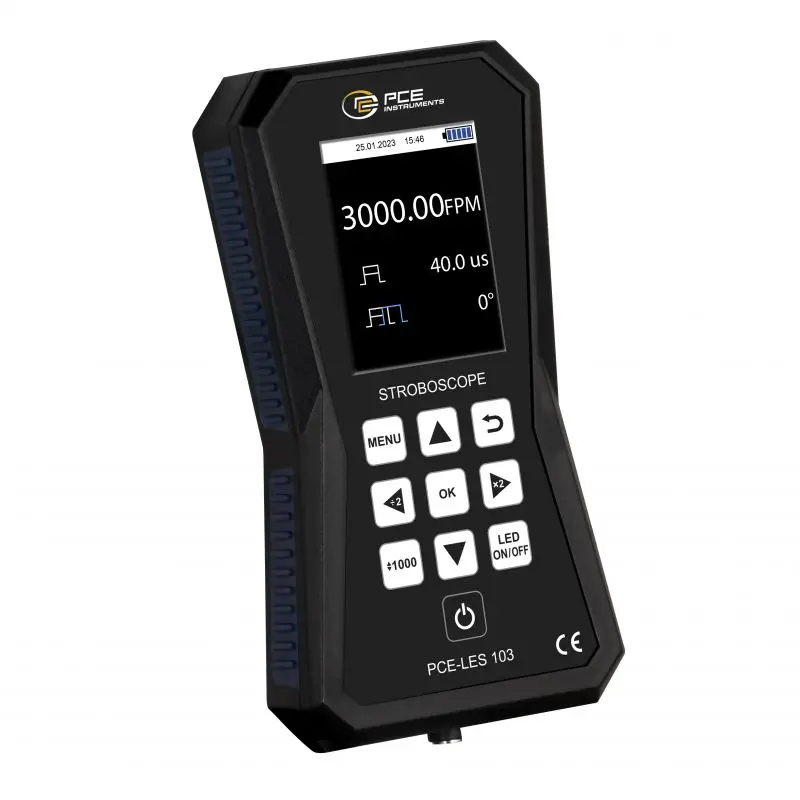

PCE-LES 103 dari PCE Instruments adalah tachometer/LED stroboscope handheld presisi tinggi yang dirancang untuk analisis pergerakan dan kecepatan rotasi mesin tanpa kontak. Alat ini memungkinkan pengukuran frekuensi flash serta pengukuran putaran optimal melalui mode stroboskop, cocok untuk aplikasi industri seperti mesin cetak, tekstil, conveyor, dan sistem rotasi lainnya.
FITUR PCE-LES 103
- Kecerahan: 3 LED Daya Tinggi
- Frekuensi lampu kilat dapat disesuaikan dalam FPM dan Hz
- 6160 lux pada 30 cm / 1000 Hz
- Modulasi lebar pulsa digital
- Pergeseran fase: -360° hingga +360°
- Penyesuaian cepat dengan tombol x2 dan 2
- Tombol kontrol intuitif dan tampilan jernih
- (Baris kosong untuk pemformatan)
SPESIFIAKSI PCE-LES 103
| Frequency | |
| Measurement Range | +60 FPM … +9999.99 FPM |
| Resolution | 0.01 FPM |
| Accuracy | 0.001% |
| Frequency | |
| Measurement Range | +10000 FPM … +300000 FPM |
| Resolution | 0.1 FPM |
| Accuracy | 0.001% |
| Frequency | |
| Measurement Range | +1 Hz … +5000 Hz |
| Resolution | 0.01 Hz |
| Accuracy | 0.001% |
| General Technical Data | |
| Display Type | TFT Color Display |
| Display Size | 2.8 inches |
| Operating Time | 4.5 hours |
| Operating Time Additional Information | at flash frequency 100 Hz, 1%, display brightness 70% |
| Adjustable Auto Shutdown | 2 … 10 min. |
| Auto Shutdown Deactivatable | Yes |
| Brightness | 11730 lux @ 20cm @ 1000Hz 1% 6160 lux @ 30cm @ 1000Hz 1% 2650 lux @ 50cm @ 1000Hz 1% |
| Light Color | 6500 K |
| Phase Shift | -360 … 360 ° |
| Pulse Width | 0.01 … 1% of pulse duration Resolution: 0.01%0.01 º … 3.60 º of 360 º Resolution: 0.01 º |
| Menu Language | German, English, Spanish, French, Italian, Dutch, Turkish, Polish, Russian, Chinese |
| Protection Class (Device) | IP52 |
| Power Supply | 5V DC, 2A |
| Weight | 284 g |
| Dimensions (L x W x H) | 165 x 90 x 35 mm / 6,4 x 3,5 x 1,3 in |
| Operating Conditions | -20 … 60 °C, 35 … 85% r.H |
| Storage Conditions | -20 … 60 °C, 35 … 85% r.H |
| Instruction Manual Languages | German, English |
| Batteries and Accumulators | |
| Type | Lithium-Ion Battery |
| Lithium Info | Lithium in the product (built-in or included) |
| Capacity | 2200 mAh |
| Voltage | 7.4 V |
| System | Secondary: Rechargeable Battery / Accumulator |
| Number | 1 |
