Description

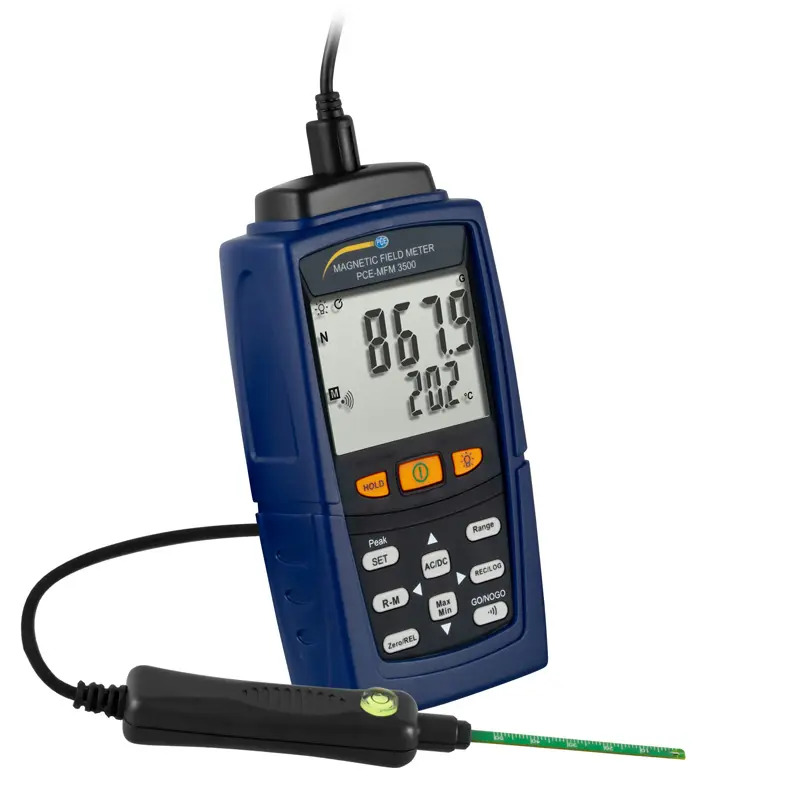

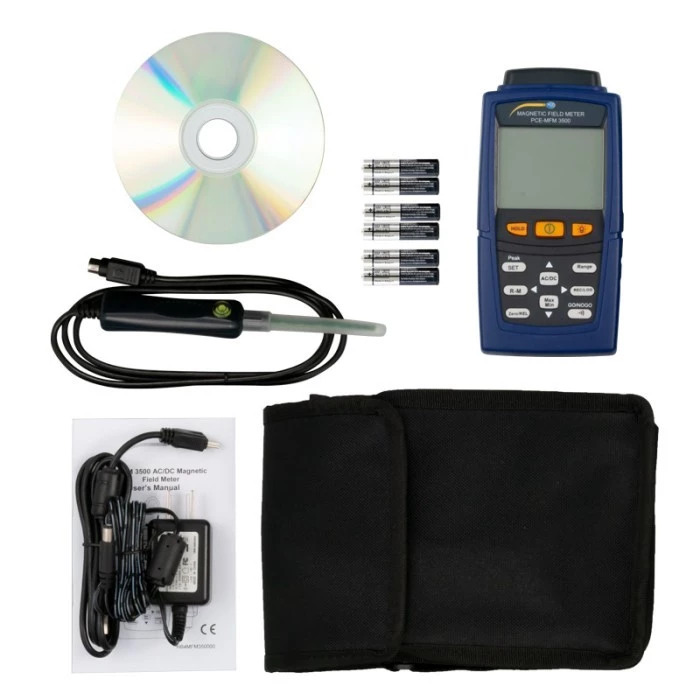

PCE-MFM 3500-ICA adalah alat ukur medan magnet elektromagnetik (Gauss/Tesla Meter) handheld yang handal dan multifungsi. Dilengkapi probe eksternal untuk akses pengukuran di area sempit, alat ini mengukur medan magnet DC dan AC dengan rentang hingga 30.000 Gauss, serta memiliki fitur pengukuran suhu, memori nilai pengukuran (boot-up hingga 7.000 data), alarm yang dapat diatur, dan konektivitas PC via Mini-USB untuk analisis data real-time. Paket termasuk sertifikat kalibrasi ISO untuk akurasi terpercaya.
FITUR PCE-MFM 3500
- Fungsi alarm yang dapat disesuaikan
- Memori data dengan koneksi PC
- Pengukuran suhu
- Pengukuran AC / DC yang dapat diganti
- Penyelarasan sensor dengan gelembung dimungkinkan
- Tutup pelindung karet untuk handset
SPESIFIKASI PCE-MFM 3500
| Measuring function | DC Milli Tesla | |
| Measuring range | Resolution | Accuracy |
| 300.00 mT | 0.01 mT | ± (4% + 10 Dgt) |
| 2,000.0 mT | 0.1 mT | ± (4% + 10 Dgt) |
| 2,000.1 … 3,000.0 mT | 0.1 mT | N / A |
| Measuring function | DC Gauss | Â |
| Measuring range | Resolution | Accuracy |
| 3,000.0 G | 0.1 G | ± (4% + 10 Dgt) |
| 20,000 G | 1 G | ± (4% + 10 Dgt) |
| 20.0001 … 30.000 G | 1 G | N / A |
| Measuring function | AC milli Tesla | |
| Measuring range | Resolution | Accuracy |
| 150.00 mT | 0.01 mT | ± (5% + 20 Dgt) |
| 1,500.0 mT | 0.1 mT | ± (5% + 20 Dgt) |
| Measuring function | AC Gauss | |
| Measuring range | Resolution | Accuracy |
| 1,500.0 G | 0.1 G | ± (5% + 20 Dgt) |
| 15,000 G | 1 G | ± (5% + 20 Dgt) |
| The accuracies refer to the following ambient conditions: 23°C / 73.4°F ± 5°C / 41°F, < 80% RH |
||
| Measuring function | Temperature | |
| Measuring range | Resolution | Accuracy |
| -20 … 50°C | ± 0.1°C | ± 1.0°C |
| -4 … 122°F | ± 0.18°F | ± 1.8°F |
| AC Frequency | 40 … 500 Hz | |
| Storage | Manual: up to 200 values | |
| Automatic: up to 7,000 values | ||
| Interface | Mini USB | |
| Display | LC display, 5 digits, display up to 30,000 | |
| Sensor | Removable, cable length approx. 1 m / 3.3 ft | |
| Automatic switch-off function | Off or after 15 minutes | |
| Power supply batteries | 6 x 1.5V AAA | |
| Battery Life | About 100 hours | |
| Power supply power supply | Primary: 100 … 240V | |
| Secondary: 9V, 0.5A | ||
| Operating conditions | 5 … 40°C / 41 … 104°F, < 80% rh | |
| Storage conditions | 0 … 50°C / 32 … 122°F, < 70% rh | |
| Working height | 2,000 m /Â 6,561.7 ft | |
| Pollution degree | 2 | |
| Dimensions | 156 x 73 x 35 mm / 6.1 x 2.9 x 1.4 in | |
| Weight | About 320 g / < 1 lb (with batteries) | |
