Description

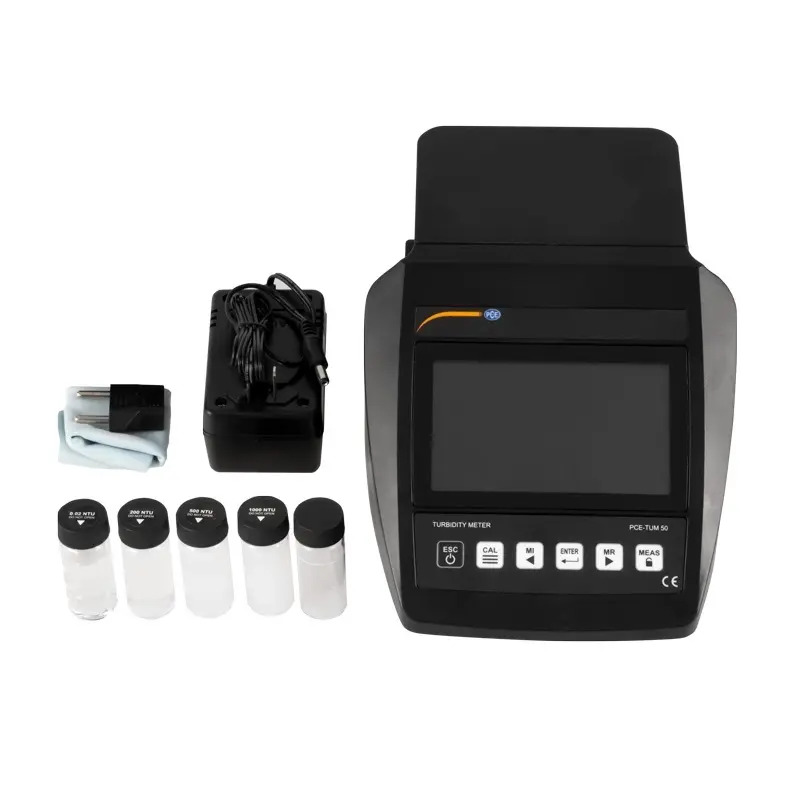

PCE-TUM 50 adalah alat ukur kekeruhan (turbidity) air yang dirancang untuk memberikan hasil pengukuran cepat, akurat, dan stabil. Alat ini bekerja dengan metode nephelometric (pengukuran cahaya yang dipantulkan oleh partikel tersuspensi), sesuai standar ISO 7027.
FITUR PCE-TUM 50
- Presisi tinggi
- 3 unit pengukuran
- Kalibrasi kekeruhan hingga 7 titik
- Tampilan warna
- Mudah dioperasikan
- Antarmuka USB
SPESIFIKASI PCE-TUM 50
| Measurement method | ISO 7027 (90°) |
| Measuring ranges | 0 … 2000 NTU |
| 0 … 500 EBC | |
| 0 … 9999 ASBC | |
| Resolution | < 100 NTU: 0.01 |
| < 999 NTU: 0.1 | |
| < 2000 NTU: 1 | |
| Accuracy | < 500 NTU: ± 2% of measured value |
| < 2000 NTU: ± 3% of measured value | |
| Calibration | < 0.02 NTU |
| 10 NTU | |
| 200 NTU | |
| 500 NTU | |
| 1000 NTU | |
| 1500 NTU | |
| 2000 NTU | |
| Or user-specific | |
| Light source | 850 nm IR LED |
| Scattered light influence | < 0.02 NTU |
| Dimensions of cuvettes | 60 x 25 mm / 2.4 x 1 in |
| Automatic shutdown | 2 hours after the device was not used |
| Storage | 200 memory slots |
| Interface | USB |
| Power supply | 220 VAC/50 Hz, 12 VDC |
| Current consumption | About 300-mA |
| Operating temperature | 0 … 60°C / 32 … 140°F |
| Dimensions | 250 x 177 x 96 mm / 9.8 x 7 x 3.8 in |
| Weight | About 1.2 kg / 2.6 lbs |
