Description

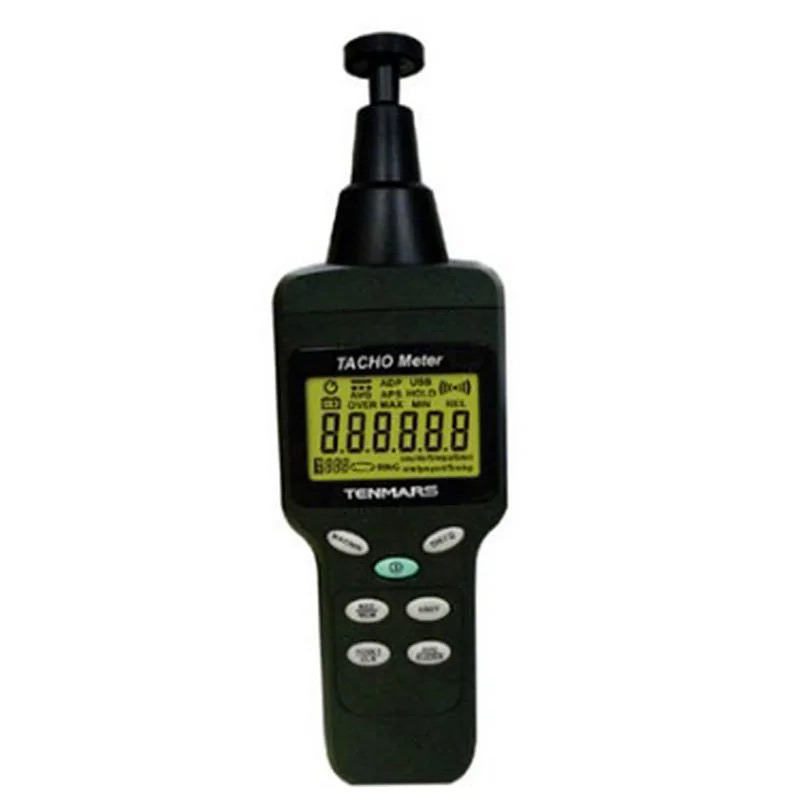

Tenmars TM-4100 Tachometer adalah alat pengukur kecepatan putaran (rpm) handheld yang mendukung pengukuran non-kontak (laser/optik) serta mendukung pengukuran kontak dengan aksesori terpisah. Alat ini cocok untuk inspeksi mesin, motor, conveyor, kipas dan aplikasi industri yang membutuhkan pengukuran rotasi secara cepat dan akurat.
FITUR Tenmars TM-4100
- LCD besar 6 digit dengan lampu latar.
- Mengukur dengan keluaran cahaya spektrum tampak merah.
- Jarak pengukuran: 50~500mm.
- Penyimpanan data manual: 300 data.
- Pencatat data USB hingga 20.000 data (TM-4100D).
SPESIFIKASI Tenmars TM-4100
| Models | TM-4100 | TM-4100D (USB datalogger) |
| Display | 6 digits backlit LCD | |
| Detection distance | 50mm to 500mm (1.58 to 19.7) | |
| Measuring indicator | The LCD display RING with a buzzer sound (or off) | |
| Sampling period | 62.5ms to 2s | |
| Operating temp/humidity | 0~40°C;25% to 75% RH | |
| Storage temp/humidity | -10~60°C;0% to 80% RH | |
| Memory capacity | 300 data sets | 20,000 data sets |
| Power supply | 9V battery x1 | |
| External power | AC 100~240V to DC 9V/0.5A | |
| Battery life | About 30 hours (buzzer off) | |
| Dimension | Approx. 186x76x36mm (LxWxH) | |
| Weight | Approx. 200g | |
| Accessories | Battery x1, carrying case x1, reflective tape x1 sheet, MINI USB 4P (MALE) to USB cable x1 (TM-4100D) | |
| Accuracy | AVG ON | AVG OFF |
| Up to 9,999 counts | ±1dgt | ±10dgt |
| 10,000 counts | ±2dgt | ±20dgt |
| 20,000 counts or more(r/min mode only) | ±20dgt | ±100dgt |
| Period measurement only | ±0.5% rdg is added to above-mentioned accuracy | |
| Periodmeasurement
(ms)
|
1 |
0.6000 to 1.9999 |
0.6000 to 1.9990 |
– |
– |
| 2 |
2.000 to 19.999 |
2.000 to 19.990 |
3.000 to 19.999 |
3.000 to 19.990 |
|
| 3 |
20.00 to 199.99 |
20.00 to 199.90 |
20.00 to 199.99 |
20.00 to 199.90 |
|
| 4 |
200.0 to 1999.9 |
– |
200.0 to 3999.9 |
200.0 to 399.0 |
|
| Countmeasurement
(count) |
1 |
0 to 999999 (input conditions up to rotational speed measurement upper limit) |
|||
| Mode | Range | Contactless measurement | Contact measurement | ||
|
AVG=ON |
AVG=OFF |
AVG=ON |
AVG=OFF | ||
| Rotationalspeed
measurement (r/m) |
1 |
30.00 to 199.99 |
– |
15.00 to 199.99 |
– |
|
2 |
200.0 to 1999.9 |
300.0 to 1999.0 |
200.0 to 1999.9 |
150.0 to 1999.0 | |
|
3 |
2000 to 19999 |
2000 to 19990 |
2000 to 19999 |
2000 to 19999 | |
|
4 |
20000 to 99990 |
20000 to 99990 |
– |
– | |
| Rotationalspeed
measurement (r/s |
1 |
0.5000 to 1.9999 |
– |
0.2500 to 1.9999 |
– |
|
2 |
2.000 to 19.999 |
5.000 to 19.990 |
2.000 to 19.999 |
2.500 to 19.990 | |
|
3 |
20.00 to 199.99 |
20.00 to 199.90 |
20.00 to 199.99 |
20.00 to 199.90 | |
|
4 |
200.0 to 1600.0 |
200.0 to 1600.0 |
200.0 to 333.0 |
200.0 to 333.0 | |
| SpeedMeasurement | Range | AVG ON | AVG OFF |
| m/min
|
1 | 1.500 to 19.999 | – |
| 2 | 20.00 to 199.99 | 15.00 to 199.90 | |
| 3 | 200.0 to 1999.9 | 200.0 to 1999.0 | |
| m/s
|
1 | 0.0250 to 1.9999 | 0.2500 to 1999.0 |
| 2 | 2.000 to 19.999 | 2.000 to 19.990 | |
| 3 | 20.00 to 33.30 | 20.00 to 33.30 |
