Description

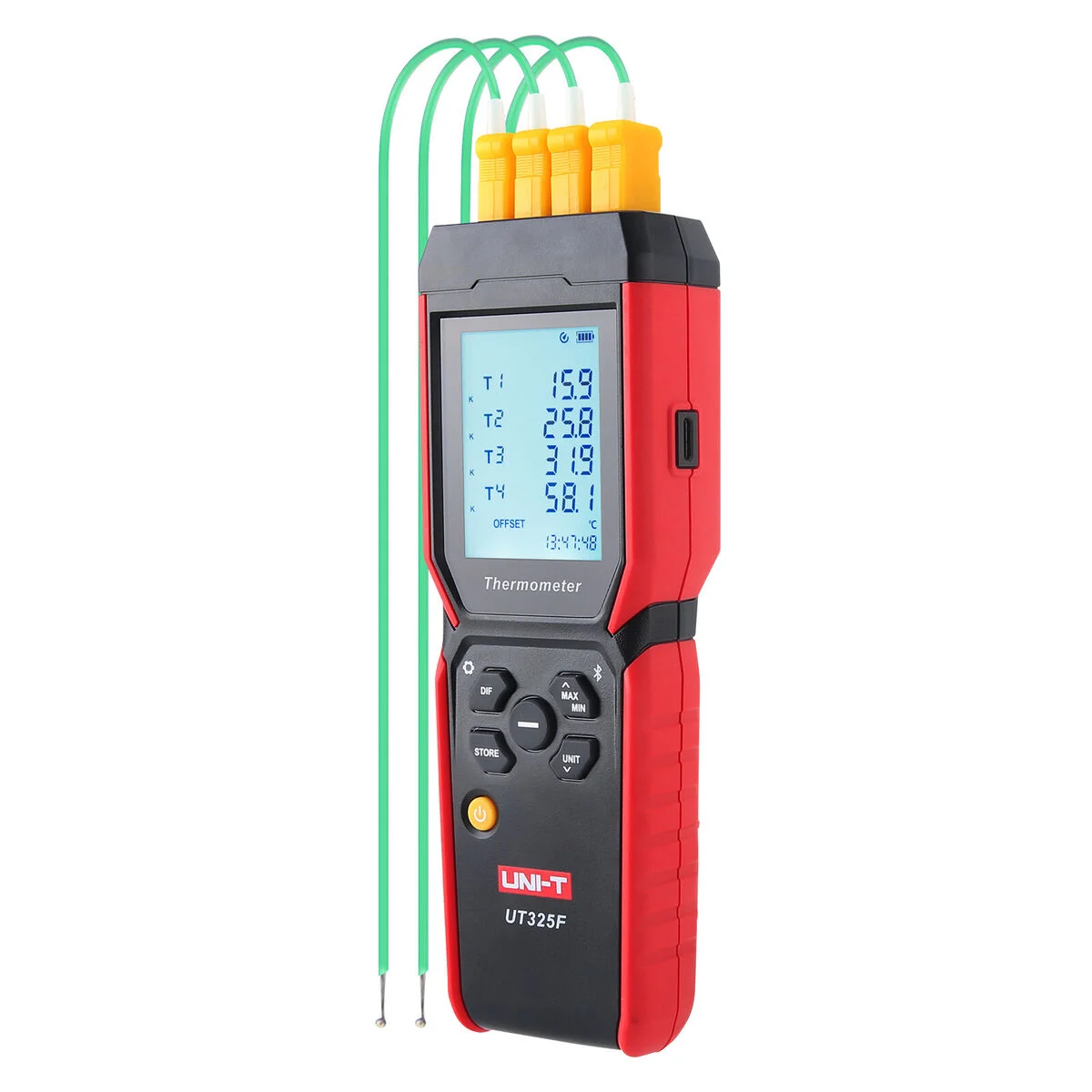

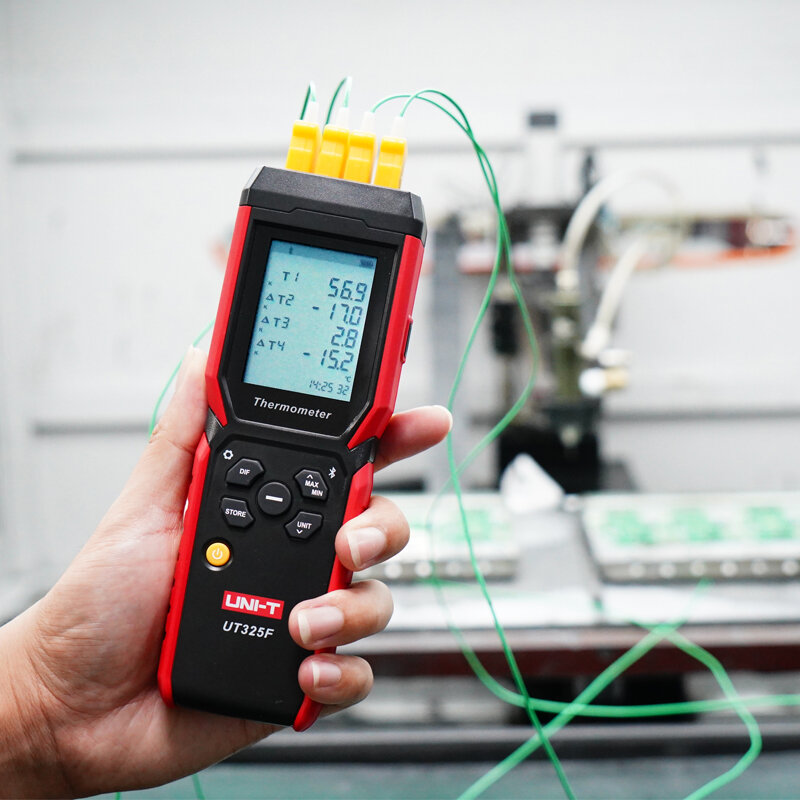

Termometer 4-Saluran UT325F adalah termometer digital dengan akurasi tinggi yang menggunakan termokopel sebagai probe suhu. Termometer ini banyak digunakan dalam pemantauan perangkat elektronik dan mekanik, uji laboratorium, pemrosesan perangkat keras, penempatan beton.
FITUR UNI-T UT325F
- Display baterai pada layar
- Max/Min/Avg
- Timing measurement
- Bluetooth Mobile App
- PC data transfer melalui USB C
- Port Tripod 1/4″
SPESIFIKASI UNI-T UT325F
| Specification | UT325F | |
| Thermocouple types | Type K, J, T, E, R, S and N | |
| Measuring range | Type K thermocouple | -200.0℃~1372℃ (-328.0℉~2501℉) |
| Type J thermocouple | -210.0℃~1200℃(-346.0℉~2192℉) | |
| Type T thermocouple | -250.0℃~400.0℃(-418.0℉~752.0℉) | |
| Type E thermocouple | -150.0℃~1000℃(-238.0℉~1832℉) | |
| Type R thermocouple | 0℃~1767℃(32℉~3212℉) | |
| Type S thermocouple | 0℃~1767℃ (32℉~3212℉) | |
| Type N thermocouple | -200.0℃~1300℃(-328.0℉～2372℉) | |
| Display resolution | 0.1℃/℉/K (<1000) | |
| 1.0℃/℉/K (≥1000) | ||
| Accuracy | ±(0.2%+0.5℃) | Below -10℃: The original basis + 0.5℃; Below -200℃: The original basis + 2℃; Type T below -200℃: For reference only |
| ±(0.2%+0.9℉) | ||
| The accuracy is applicable to the ambient temperature of 18℃ to 28℃, and it does not include the error of the thermocouple | ||
| Repeatability accuracy | ±0.1%+0.3℃ | |
| Response time | About 500ms | |
| Measurement functions | Unit selection | ℃/℉/K |
| Data hold | √ | |
| Auto power off | √ | |
| Measurement modes | MIN/MAX/AVG | |
| Difference | View temperature difference between any two channels | |
| Timing measurement | The recording interval can be set for 1s-24h to record the measurement data periodically | |
| System functions | Data recording | 72000 |
| Backlight | Turn on/off | |
| Data transmission | Type-C USB, Bluetooth | |
| Battery status | √ | |
| Power frequency anti-interference | 50/60Hz | |
| Drop proof | 1m | |
| Operating time | ﹥30h | |
| Operating temperature | -10℃~50℃ (14℉~122℉) | |
| Storage temperature | 20℃~60.0℃ (-4℉~140℉) | |
| Operating humidity | 90%RH (non-condensing) | |
| Characteristic | ||

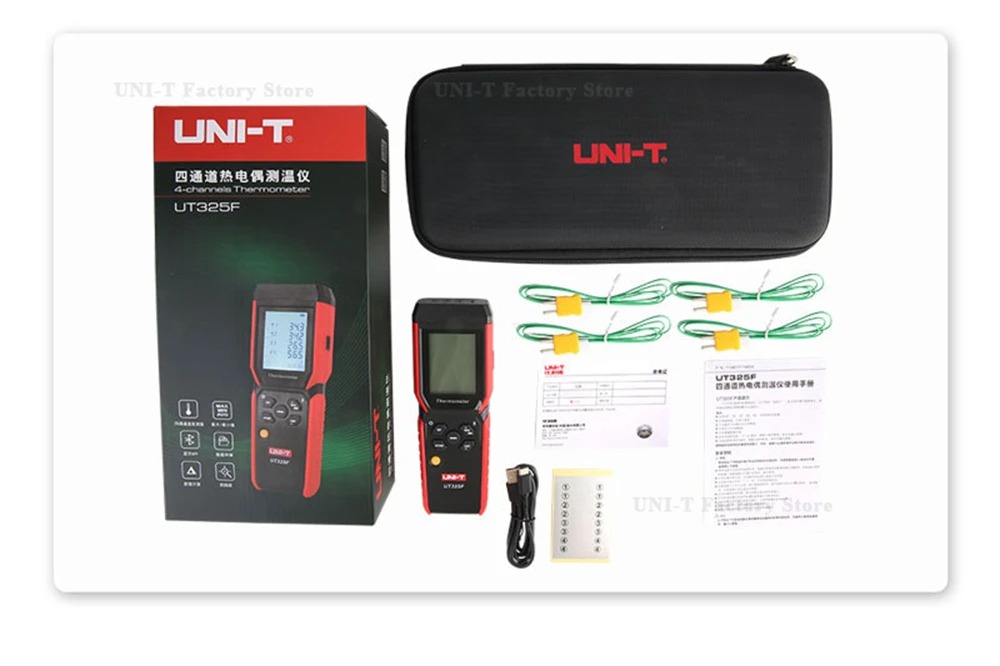

| Standard accessories | 3*AAA battery, 4*thermocouples, product,user manual,safety instructions, gift box | |
| Power | 3*AAA alkaline zinc-manganese battery | |
| Product size | 178×63×38mm | |
| Product net weight | ||
| Standard quantity per carton | 10pcs | |
| Standard carton size | 395×330×330mm | |
