Description

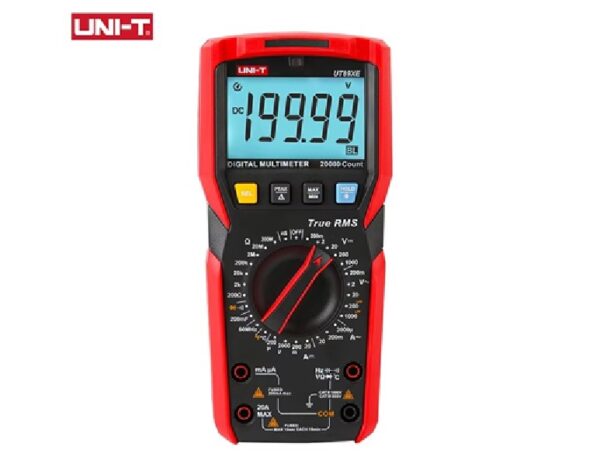

UNI-T UT89XE Professional Digital Multimeter adalah multimeter digital profesional berteknologi True RMS yang dirancang untuk memberikan pengukuran akurat dan stabil, baik untuk sinyal AC maupun DC. Alat ini sangat cocok untuk teknisi listrik, teknisi servis elektronik, pelajar teknik, serta pekerjaan industri ringan hingga menengah.
FITUR UNI-T UT89XE
- CAT II 1000V/CATIII 600V
- Jumlah tampilan: 6000/20000
- True RMS
- Low Pass Filter (LPF)
- Pengukuran tegangan AC/DC 1000V
- Pengukuran arus AC dan DC 20A
- Pengukuran resistansi 200MΩ / kapasitansi 200000uF
- Rentang frekuensi AC: 45~1000Hz
- Konduktansi: 200nS
- Rentang pengukuran suhu: -10~1000.0℃/-40 ~ 1832℉
- Nilai puncak/Nilai relatif
- MAKS/MIN
- Laju pengambilan sampel: 3 kali/detik
- Alarm suara/visual
- Indikator pengisian kapasitor
- Desain ergonomis
- Injeksi ganda molding
- Lampu latar otomatis
- Daya mati otomatis/lampu latar otomatis
- Penyimpanan data
- Keandalan anti jatuh 1 meter
SPESIFIKASI UNI-T UT89XE
| Specifications | Range | UT89X | UT89XD | UT89XE |
| DC voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.5%+2) | ±(0.5%+2) | |
| 200mV/2V/20V/200V/1000V | ±(0.05%+5) | |||
| AC voltage (V) | 6V/60V/600V/1000V | ±(0.8%+5) | ±(0.8%+5) | |
| 200mV/2V/20V/200V/1000V | ±(0.8%+25) | |||
| DC current (A) | 60μA/60mA/600mA/20A | ±(0.8%+8) | ||
| 60μA/6mA/60mA/600mA/20A | ±(0.8%+8) | |||
| 2000μA/200mA/20A | ±(0.5%+4) | |||
| AC current (A) | 60mA/600mA/20A | ±(1%+12) | ±(1%+12) | |
| 2000uA/200mA/20A | ±(1.5%+15) | |||
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) | ±(0.8%+3) | |
| 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | ±(0.4%+5) | |||
| Capacitance (F) | 100mF | ±(2.5%+20) | ±(2.5%+20) | |
| 200mF | ±(4%+50) | |||
| Conductance (ns) | 200nS | ±(1.2%+50) | ||
| Frequency (Hz) | 9.999Hz/9.999MHz | ±(0.1%+4) | ±(0.1%+4) | |
| 60MHz | ±(0.1%+3) | |||
| Duty cycle | 0.1%~99.9% | ±(2%+5) | ±(2%+5) | |
| Temperature (℃) | -40℃~1000℃ | ±(2%+4) | ±(1%+10) | |
| Temperature (℉) | -40℉~1832℉ | ±(2%+8) | ±(1.5%+10) | |
| Live wire test | √ | |||
| LED test | 12V | |||
| Audible/visual alarm | V/A/Cap/Diode | Live/hFE/NCV | LED/hFE/NCV | √ |
| Transistor Hfe | √ | √ | ||
| Dual range NCV test | √ | √ | ||
| Flashlight | √ | √ | ||
| MAX/MIN | √ | |||
| Peak Hold | √ | |||
| LPF measurement | √ | |||
| General Characteristics | ||||
| Power | 1.5V battery (R03) x 4 | |||
| Display | 61mm x 36mm | |||
| Product net weight | 345g | |||
| Product size | 189mm x 89mm x 53mm | |||

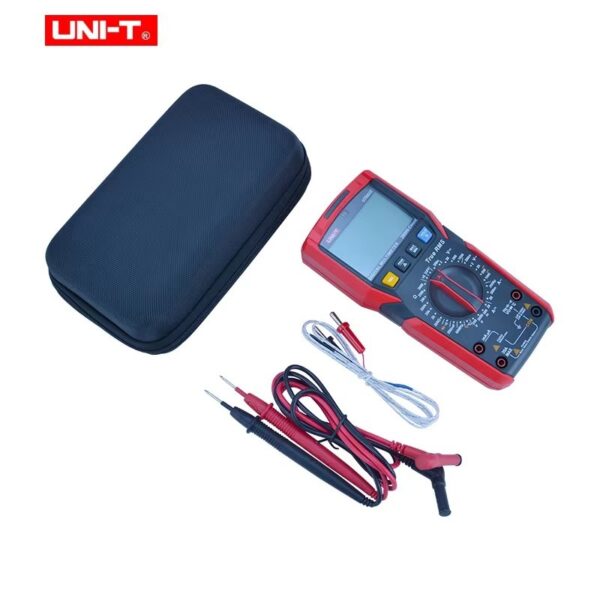

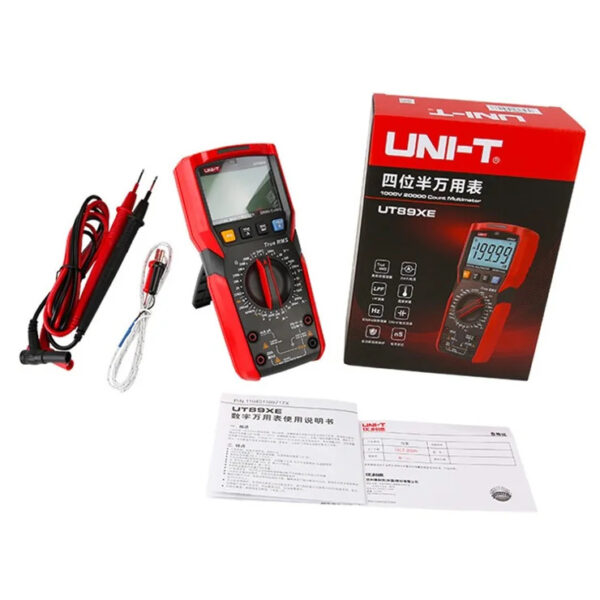

| Standard accessories | Batteries, test lead, k-type temperature probe (UT89X/UT89XE), English manual | |||
| Standard individual packing | Gift box | |||
| Standard quantity per carton | 20pcs | |||
| Standard carton measurement | 450mm x 355mm x 340mm | |||
| Standard carton gross weight | 12.2kg | |||
UT89XE mampu melakukan pengukuran tegangan AC/DC, arus DC, resistansi, kapasitansi, frekuensi, suhu, serta dilengkapi fungsi uji dioda dan kontinuitas. Salah satu keunggulannya adalah fitur pengukuran suhu langsung dengan sensor termokopel, sangat membantu dalam analisis sistem pendingin dan peralatan elektronik.
