Description

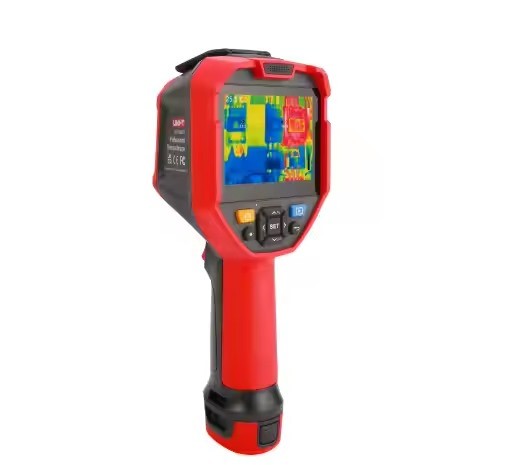

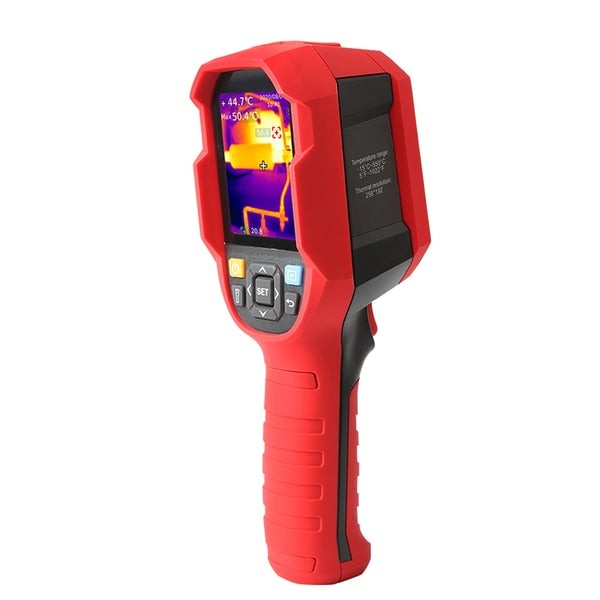

Pencitra termal inframerah genggam UTi260V+, resolusi inframerah: 256 × 192 dan 5 juta piksel cahaya tampak membuat Anda melihat lebih jelas, dengan rentang pengukuran suhu yang lebar 20~550 ℃ untuk memenuhi lebih banyak skenario penggunaan. Layar sentuh 3,5″ memudahkan pekerjaan Anda, dan fungsi laser range memungkinkan Anda menyelesaikan pekerjaan pengukuran dalam jarak yang aman.
Pengukuran suhu titik tengah/pelacakan otomatis suhu tinggi dan rendah/objek analisis kustom/fungsi batas suhu kustom isoterm lebih kondusif untuk menemukan anomali atau bagian yang ingin Anda amati dengan cepat. Selain fungsi yang kuat pada tubuh, ia juga dilengkapi dengan fotografi, perekaman video, aplikasi seluler, perangkat lunak PC untuk transmisi gambar waktu nyata dan analisis pascagambar serta laporan analisis keluaran pemrosesan.
FITUR UNI-T UTi260V
- Resolusi inframerah: 256×192
- Resolusi layar 2,640×480, layar sentuh LCD 3,5″.
- Rentang pengukuran suhu: -20 ~ 550 ℃
- Dilengkapi dengan T-MIX algoritma fusi gambar yang dikembangkan sendiri
- Pengukur jarak laser 5.30m
- Mendukung penyimpanan foto/video
- Perangkat lunak PC/aplikasi seluler (Android dan iOS)
- mode gambar: pencitraan termal, cahaya terang, perpaduan Cahaya T/ganda, gambar dalam gambar
- juta lensa lampu terang piksel
- Fungsi istermal Manual/otomatis
- Menyesuaikan dan menambahkan analisis objek pengukuran suhu untuk pengukuran suhu
- penerangan LED
- Tingkat perlindungan IP54/2 meter tahan jatuh
SPESIFIKASI UNI-T UTi260V
|
model |
UTi260V |
model |
UTi260V |
|
Detector type |
Uncooled infrared detector |
Video Format |
MP4 |
|
Infrared resolution |
256 x 192 |
Laser indication |
√ (Class 2 laser, red) |
|
Infrared response band |
8-14um |
laser ranging |
0.3-30m (Class 2 laser, red) |
|
pixel size |
twelve μ M |
storage |
External Storage Micro32GB SD Card |
|
Frame rate |
25Hz |
data interface |
Type-C USB |
|
Thermal flexibility/NETD |
＜ 50mk |
QR code scanning |
√ |
|
Lens size |
9.3mm |
photograph |
√ |
|
focal length |
3.2mm |
Video recording |
√ |
|
aperture |
F1.1 |
Text Annotation |
√ |
|
Focusing mode |
Fixed focus |
Voice annotation |
√ |
|
Field of view angle |
56.0 ° Hx42.0 ° V |
Illuminating lamp |
√ |
|
Spatial resolution/IFOV |
3.8mrad |
Screen brightness adjustment |
√ |
|
Measuring range |
0 ℃~550 ℃/-20 ℃~150 ℃ |
language |
Simplified Chinese, English |
|
Temperature measurement accuracy |
± 2 ℃/± 2% (take the maximum value, 0 ℃~550 ℃, room temperature 25 ℃) |
Automatic shutdown |
Closed, 5min, 10min, 20min, 30min, 45min, 60min, 90min |
|
Temperature measurement resolution |
0.1 ℃ |
Mobile APP |
IOS, Android |
|
Suggested temperature measurement distance |
0.25m |
PC analysis software/PC screen projection |
√ |
|
Temperature measurement unit |
° C/° F/K |
Battery type |
3.7V, 5200mAh replaceable battery |
|
Temperature measurement display |
3 temperature measurement points (center point, highest temperature, lowest temperature) |
Charging system |
Type-C direct charging/battery pack independent charging |
|
Temperature analysis |
5 points, 3 circles, 3 rectangles, 1 line |
Charging duration |
<5h |
|
isotherm |
Manual/Automatic |
working temperature |
-10 ℃~50 ℃ |
|
High and low temperature tracking |
√ |
Storage temperature |
-20 ℃~60 ℃ |
|
High and low temperature alarm |
Screen icon alarm, lighting alarm, sound alarm |
Working humidity |
10% to 95% RH, non condensing |
|
Temperature measurement parameters |
Emissivity, reflection temperature, ambient temperature, distance, relative humidity |
Protection level |
IP54 |
|
Display screen/display resolution |
3.5 “LCD touch screen/640 × four hundred and eighty |
Fall protection |
2m |
|
Visible light resolution |
5 million pixels |
authentication |
CE, FCC, UKCA, ROHS |
|
Color palette |
Red heat, high contrast rainbow, rainbow, lava, iron red, black heat, white heat |
Tripod installation |
UNC ¼”- twenty |
|
Image mode |
Thermal imaging, visible light, T-Mix/dual light fusion, picture in picture |
Dimensions (length x width x height) |
620 x 98 x 96.5mm |
|
Number doubling |
1X, 2X, 4X |
weight |
665g |
|
Image Format |
JPG |

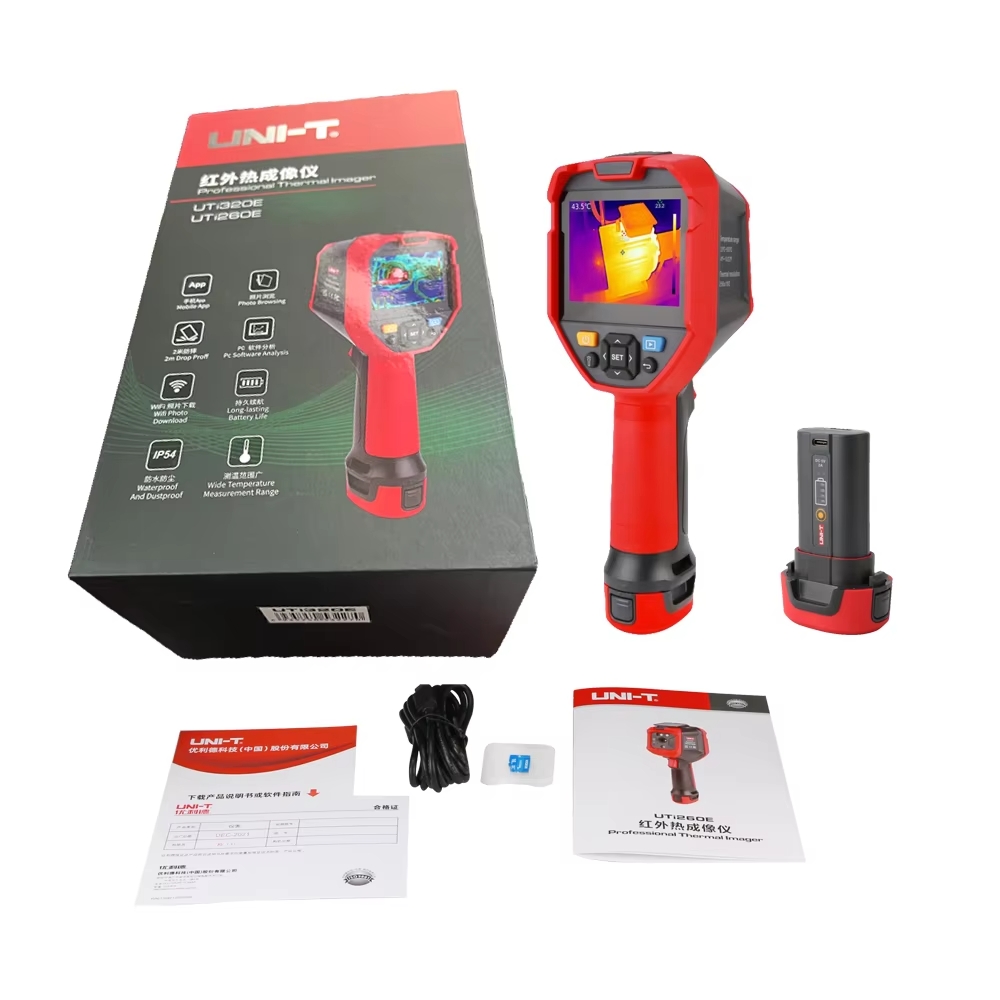

Product standard configuration |
USB cable, Micro SD card, manual, high-strength impact resistant portable case |
