Description

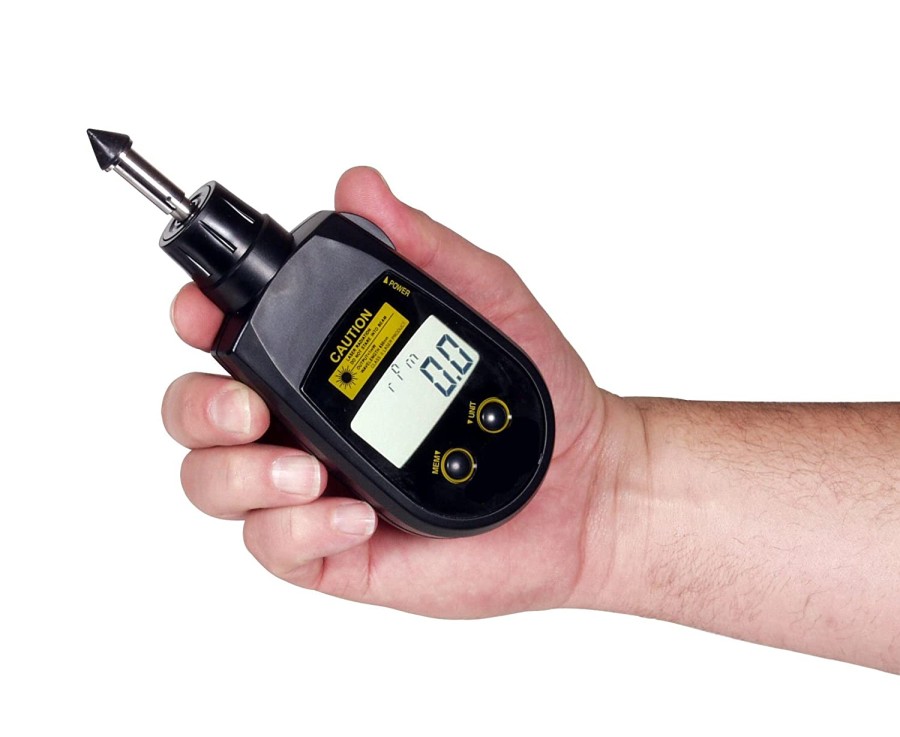

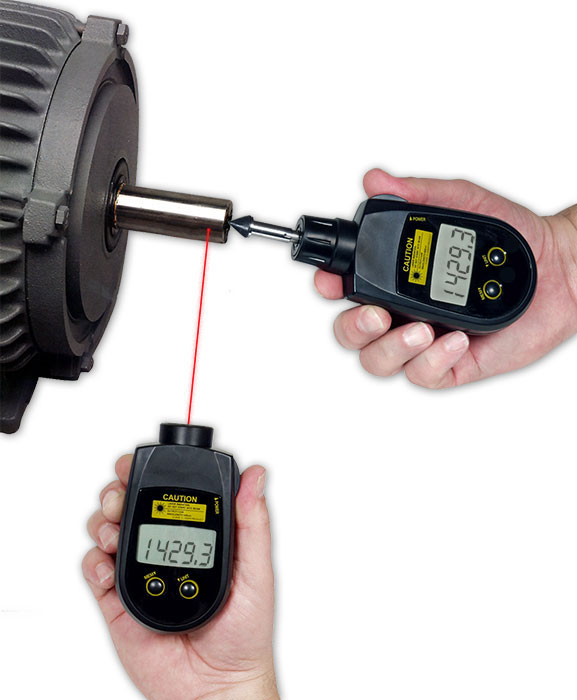

Checkline PLT-5000 adalah tachometer digital canggih yang dirancang untuk pengukuran kecepatan putaran mesin dengan mode kontak maupun non-kontak laser. Alat ini memberikan fleksibilitas tinggi bagi teknisi, insinyur, maupun pengguna industri yang membutuhkan akurasi tinggi dalam berbagai kondisi pengukuran.
FITUR Checkline PLT-5000
- Sinar Laser yang Terlihat Tajam
- Jangkauan 60″
- Mengukur RPM & kecepatan permukaan dan panjang
- Menyimpan 14 pembacaan untuk dipanggil kembali
- Menampilkan satuan panjang Metrik & Inggris
- Pengoperasian Satu Tombol yang Mudah
SPESIFIKASI Checkline PLT-5000
| Display | 5 digit 0.47″ (12mm) height LCD |
| RPM Measuring Range | Non-Contact; 6.0 – 99,999 Contact, 6.0 – 20,000 (limited for safety reasons) |
| Accuracy | Revolution 6.0-599.9 rpm ±1rpm, 600-99,999 rpm ±0.006% & ±0.5 digit |
| Resolution | 0-9999.9 – 0.1 RPM <10,000 – 1 RPM |
| Surface speed 6″ Wheel | (m/min) 1.0-3,810, (yards/min) 1.0-4,166.4 (inch/min) 36-99,999 ( feet/min) 3.0-12,499 |
| Length- ( Using 6″ wheel) | (M) 0.2-99,999-(yards) 0.2-99,999 -(feet) 0.5-99,999 |
| Total RPM | 1-99,999 |
| Surface speed, length | 0.4% and ±1 digit |
| Memory | 14 Reading are stored in memory and retained for five minutes ( Last, Max, Min, average, and 10 selectable measurements.) |
| Update time | One Second |
| Detection | Laser Diode |
| Laser Wavelength | 650 nm |
| Laser Power | < 1mW |
| Laser Class | II |
| Auto Power Off | 5 Minutes |
| Batteries Included | 3 AA 1.5V |
| Low Battery Indicator | Flashing “LO BAT” in display |
| Over Range Indicator | Flashing “OVR” display |
| Operating Temperature | 32-110F (0-45C) |
| Case construction | ABS Resin |
| Dimensions | 4.55″ L x 2.52″ W x1.24″H (115.5 mm x 64 mm x 3.15 mm) Length with contact adaptor: 149 mm |
| Weight | .35 Lb. (160 g)” to “6 ounces (160 g), including batteries |
| Country of Origin | CHINA |

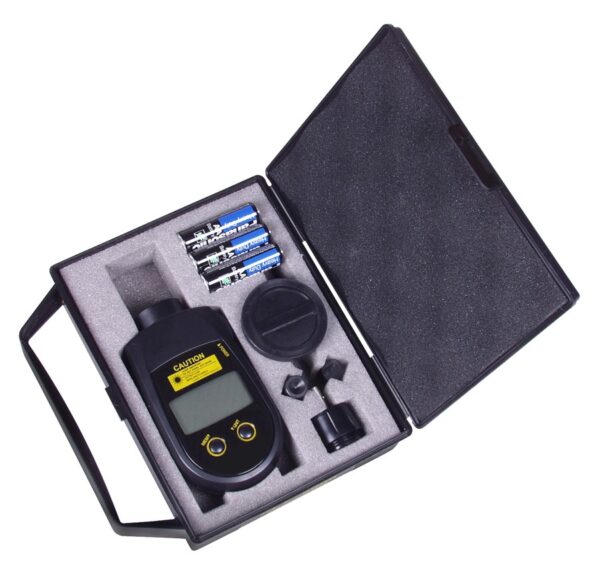

| Accessories | Storage Case, Cone Adapter, Funnel Adapter, Master Wheel ( 6″) Contact adapter, three (3) AA Batteries, 25 reflective tapes, NIST Certificate, Instructions |
