Description

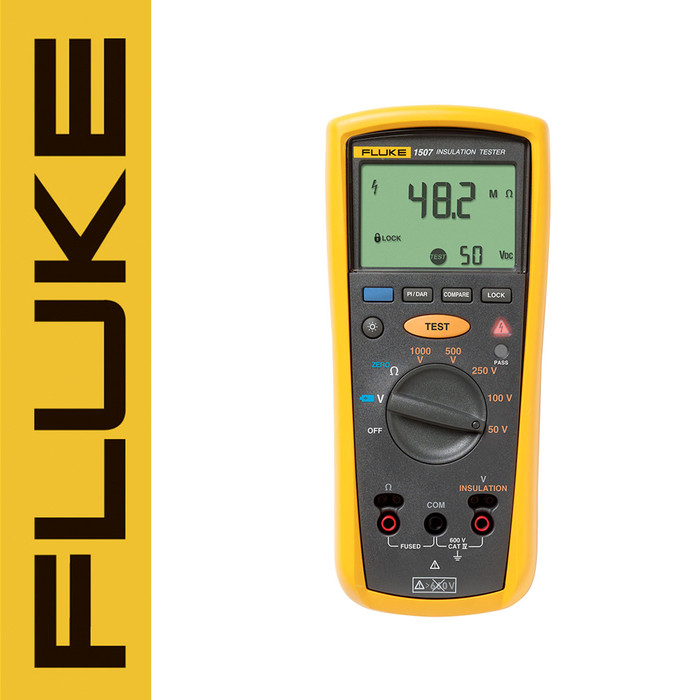

Fluke 1507 Insulation Resistance Tester adalah megger digital profesional yang dirancang untuk pengujian isolasi kabel, motor, transformator, dan instalasi listrik dengan akurasi tinggi. Alat ini mendukung berbagai pilihan tegangan uji (hingga 1000V) dan memberikan hasil pengukuran cepat serta presisi, ideal untuk inspeksi rutin maupun perawatan sistem kelistrikan industri. Dilengkapi layar digital yang jernih, desain tangguh khas Fluke, serta fitur otomatis seperti timed test dan PI/DAR measurement, Fluke 1507 menjadi pilihan unggulan bagi teknisi listrik profesional.
FITUR Fluke 1507
- Penguji resistansi isolasi canggih yang kokoh dan kompak untuk kontraktor listrik dan teknisi listrik industri dan komersial
- Secara otomatis menghitung Indeks Polarisasi dan Rasio Penyerapan Dielektrik
- Membuat tes berulang menjadi sederhana dan mudah dengan fungsi Bandingkan (Lulus/Gagal)
- Menawarkan beberapa voltase uji insulasi: 50 V, 100 V, 250 V, 500 V, dan 1000 V
SPESIFIKASI Fluke 1507
| AC/DC Voltage Measurement | ||
| Accuracy | Range | 600.0 V |
| Resolution | 0.1 V | |
| 50 Hz to 400 Hz ± (% of Rdg + Digits) | ±(2% + 3) | |
| Input impedance | 3 MΩ (nominal), < 100 pF | |
| Common mode rejection ratio (1 kΩ unbalanced): | > 60 dB at DC, 50 or 60 Hz | |
| Overload protection | 600 V rms or DC | |
| Earth Bond Resistance Measurement | ||
| Range/Resolution | 20.00 Ω | 0.01 Ω |
| 200.0 Ω | 0.1 Ω | |
| 2000 Ω | 1.0 Ω | |
| 20.00 kΩ | 0.01 kΩ | |
| Accuracy | ±(1.5% + 3) | |
| Overload protection | 2 V rms or DC | |
| Open circuit test voltage | > 4.0 V, < 8 V | |
| Short circuit current | > 200.0 mA | |
| Insulation Specifications | ||
| Measurement range | 0.01 MΩ to 10 GΩ | |
| Test voltage | 50 V, 100 V, 250 V, 500 V, 1000 V | |
| Test voltage accuracy | + 20%, – 0% | |
| Short circuit current | 1 mA nominal | |
| Auto discharge | Discharge time < 0.5 second for C = 1 µF or less | |
| Live circuit indicator | Inhibit test if terminal voltage > 30 V prior to initialization of test | |
| Maximum capacitive load | Operable with up to 1 µF load | |
| Measure accuracy | 50 V | ±(3% + 5) |
| 100 V | ±(3% + 5) | |
| 250 V | ±(1.5% + 5) | |
| 500 V | ±(1.5% + 5) | |
| 1000 V | ±(1.5% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ | |
| General Specifications | ||
| Maximum voltage applied to any terminal: | 600 V AC rms or DC | |
| Storage temperature | -40°C to 60°C (-40°F to 140°F) | |
| Operating temperature | -20°C to 55°C (-4°F to 131°F) | |
| Temperature coefficient | 0.05 x (specified accuracy) per °C for temperatures < 18°C or > 28°C (< 64°F or > 82°F) | |
| Relative humidity | ||
| 0% to 95% @ 10°C to 30°C (50°F to 86°F) | ||
| 0% to 75% @ 30°C to 40°C (86°F to 104°F) | ||
| 0% to 40% @ 40°C to 55°C (104°F to 131°F) | ||
| Vibration | Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument | |
| Shock | 1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor) | |
| Electromagnetic compatibility | In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997) | |
| Safety | Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV) | |
| Certifications | CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition | |
| Batteries | Four AA batteries (NEDA 15A or IEC LR6) | |
| Battery life | Insulation test use: | Tester can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off. |
| Resistance measurements: | Tester can perform at least 2500 earth bond resistance measurements with fresh alkaline batteries at room temperature. These are standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off. | |
| Size (H x W x L) | 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in) | |
| Weight | 550 g (1.2 lb) | |
| IP rating | IP40 | |
| Altitude | Operating | 2000 m CAT IV 600 V, 3000 m CAT III 600 V |
| Non-operating (storage) | 12,000 m | |
| Over-range capability | 110% of range | |
| Included accessories | TL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe | |
