Description

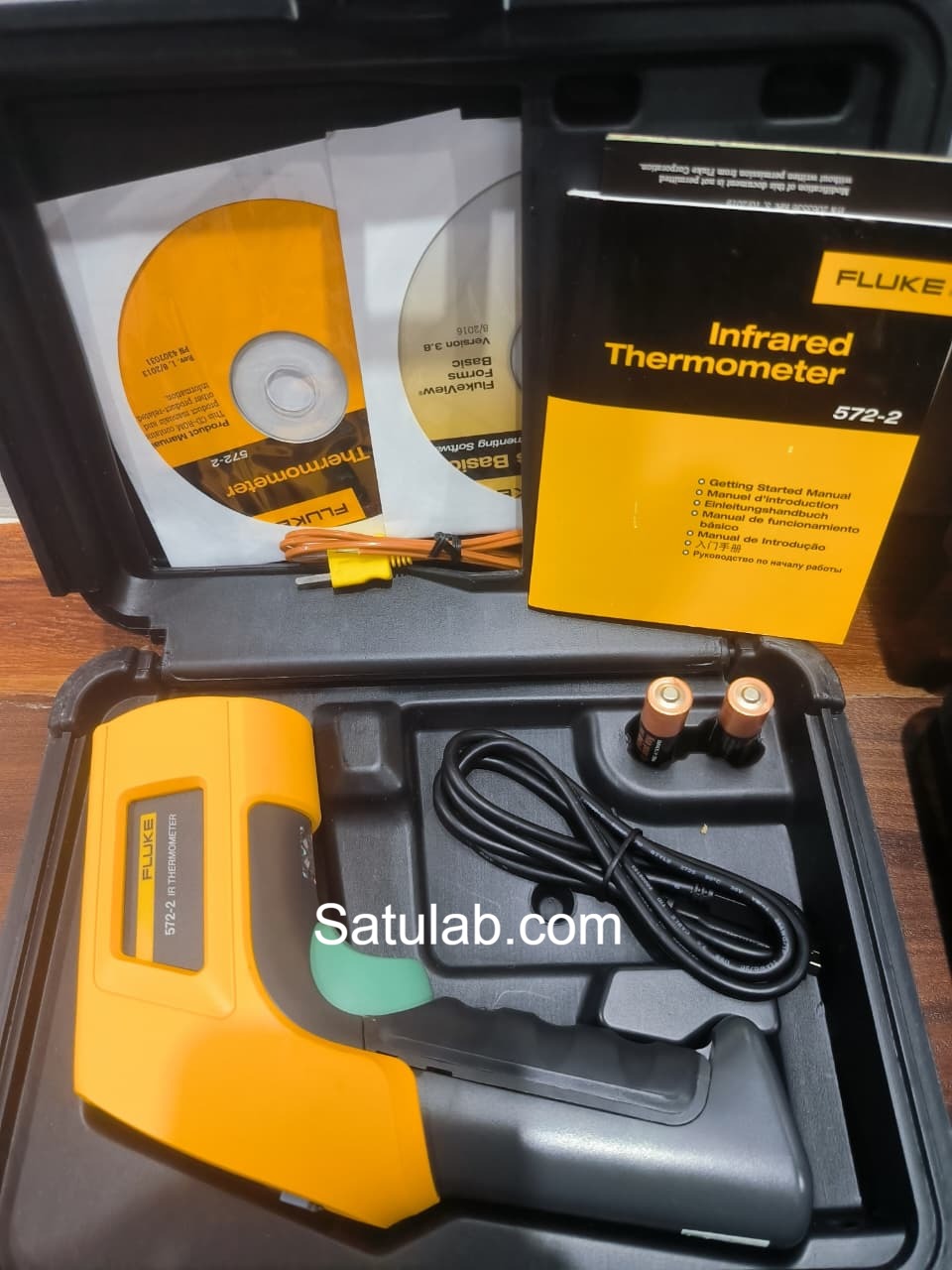

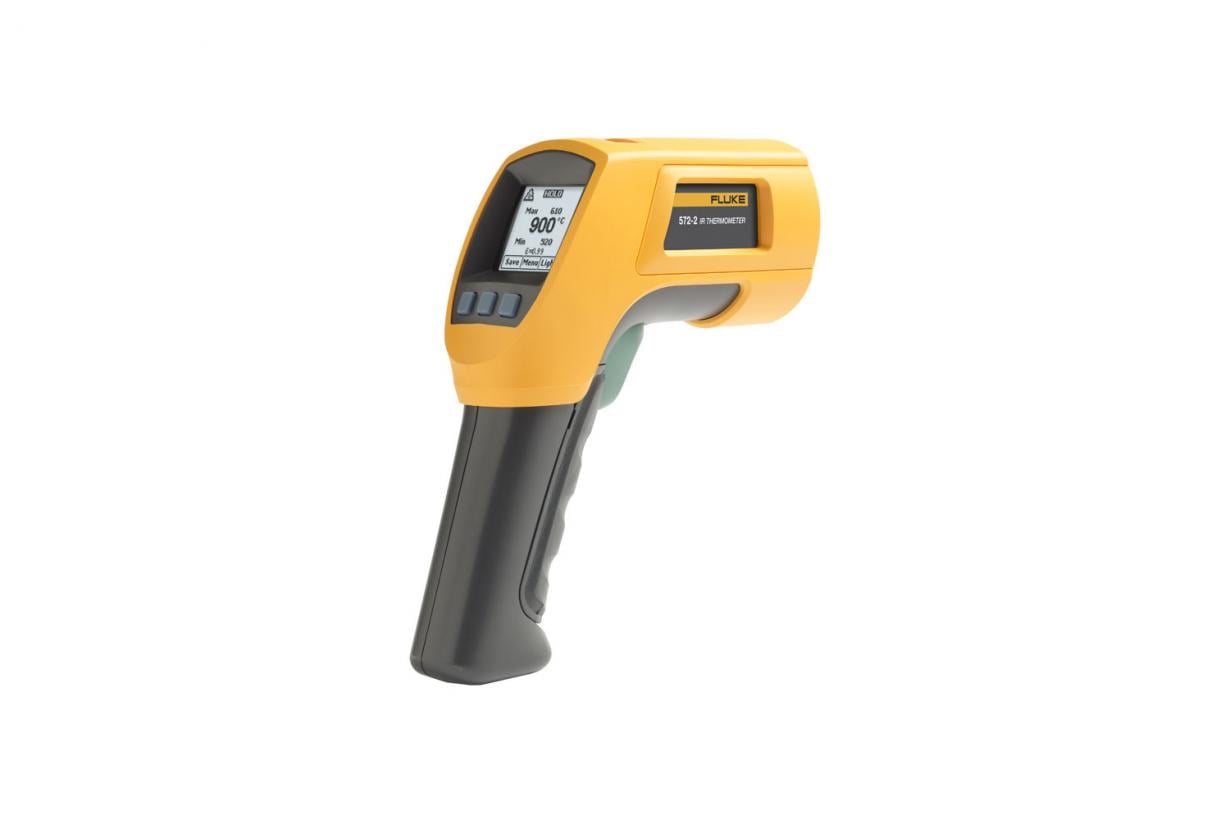

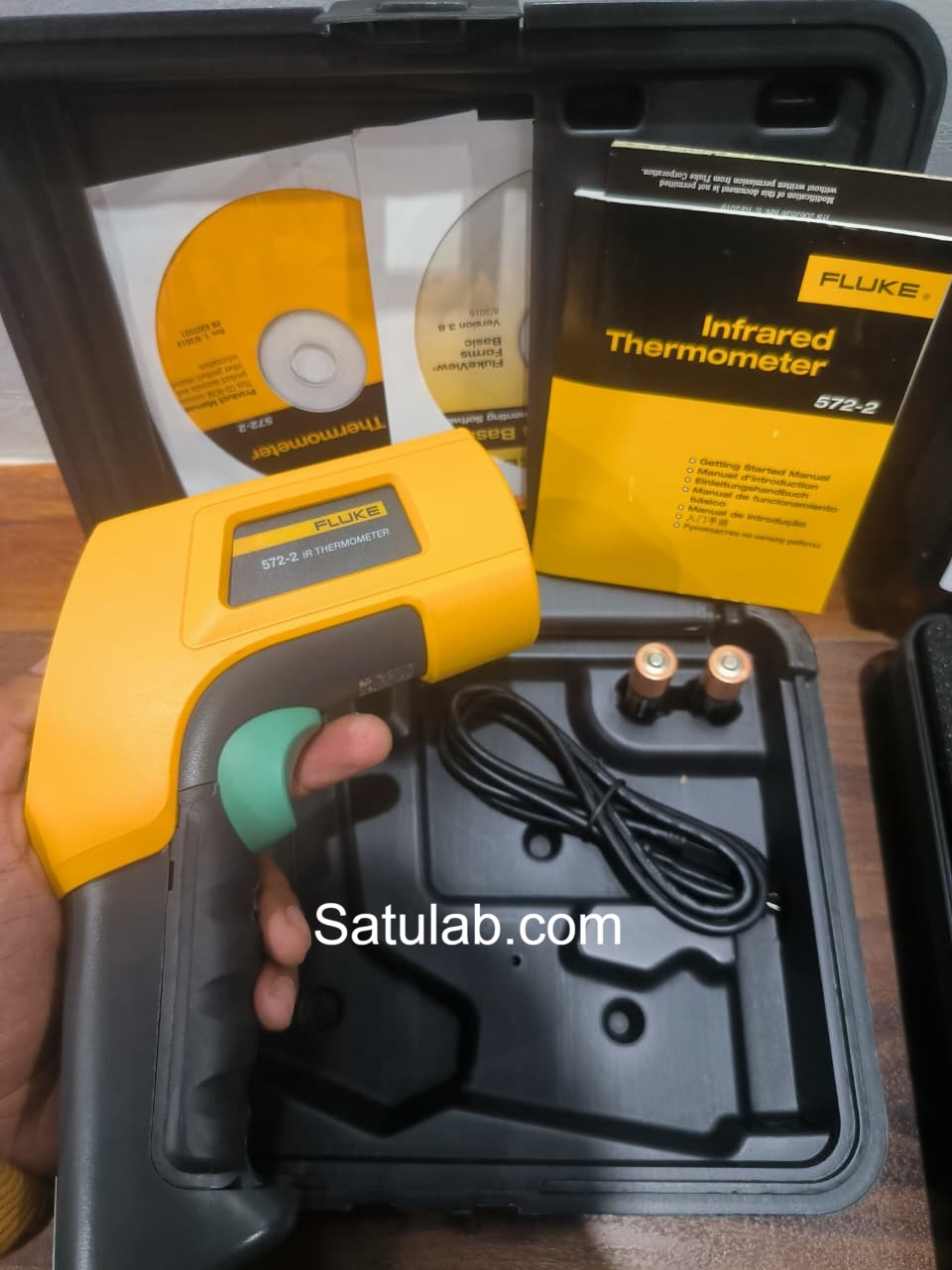

Fluke 572-2 adalah termometer industri profesional yang dirancang untuk mengukur suhu pada berbagai kondisi ekstrem dengan dua metode sekaligus, yaitu inframerah (non-contact) dan kontak menggunakan probe thermocouple tipe-K.
Secara umum, alat ini memungkinkan pengguna mengukur suhu dari jarak jauh tanpa menyentuh objek yang panas, berbahaya, atau sulit dijangkau, sekaligus menyediakan opsi pengukuran langsung untuk hasil yang lebih akurat.
FITUR Fluke 572-2
- Dual measurement (IR + kontak tipe-K) → fleksibel untuk berbagai metode pengukuran
- Rentang suhu tinggi (hingga 900°C IR) → cocok untuk aplikasi industri ekstrem
- Distance to spot 60:1 + dual laser → akurat dari jarak jauh
- Emissivity adjustable + tabel material → hasil lebih presisi
- Tampilan lengkap (MAX, MIN, AVG, DIF) → analisis suhu lebih detail
- Alarm suhu (audio & visual) → peringatan cepat saat melewati batas
- Data logging hingga 99 data → penyimpanan hasil ukur
- Display backlight & multi-bahasa → mudah digunakan di berbagai kondisi
- Kompatibel thermocouple tipe-K → bisa pakai berbagai probe standar
- Respon cepat (<500 ms) → pengukuran cepat dan efisien
SPESIFIKASI Fluke 572-2
| Infrared temperature range | -30°C to 900°C (-22°F to 1652°F) |
| IR accuracy (calibration geometry with ambient temperature 23°C ± 2°C) | ≥ 0°C: ± 1°C or ± 1% of the reading, whichever is greater |
| ≥ -10°C to < 0°C: ±2°C | |
| < -10°C: ±3°C | |
| ≥ 32°F: ± 2°F or ± 1% of the reading, whichever is greater | |
| ≥ 14°F to < 32°F: ±4°F | |
| < 14°F: ±6°F | |
| IR repeatability | ±0.5% of reading or ±0.5°C (±1°F), whichever is greater |
| Display resolution | 0.1°C / 0.1°F |
| Distance: Spot | 60:1 (calculated at 90% energy) |
| Minimum spot size | 19 mm |
| Laser sighting | Offset dual laser, output < 1 mW |
| Spectral response | 8 μm to 14 μm |
| Response time (95%) | < 500 ms |
| Emissivity | Digitally adjustable from 0.10 to 1.00 by 0.01 or via built-in table of common materials |
| Contact Measurements | |
| K-type thermocouple input temperature range | -270°C to 1372°C (-454°F to 2501°F) |
| K-type thermocouple input accuracy (with ambient temperature 23°C ± 2°C) | < -40°C: ±(1°C + 0.2° / 1°C) |
| ≥ -40°C: ±1% or 1°C, whichever is greater | |
| < -40°F: ±(2°F + 0.2° / 1°F) | |
| ≥ -40°F: ±1% or 2°F, whichever is greater | |
| K-type thermocouple | 0.1°C / 0.1°F |
| K-type thermocouple repeatability | ±0.5% of reading or ±0.5°C (±1°F), whichever is greater |
| Measurement Options | |
| Hi/Low alarms | Audible and two-color visual |
| Min/Max/Avg/Dif | Yes |
| Switchable celsius and fahrenheit | Yes |
| Backlight | Two levels, normal and extra bright for darker environments |
| Probe input | K-type thermocouple simultaneous display of probe and IR temperature |
| Trigger lock | Yes |
| Data storage | 99 points |
| Display | Dot matrix 98 x 96 pixels with function menus |
| Communication | USB 2.0 |
| K-Type Thermocouple Specifications | |
| Measurement range (bead probe) | -40°C to 260°C (-40°F to 500°F) |
| Accuracy | ±1.1°C (±2.0°F) from 0°C to 260°C (32°F to 500°F). Typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F) |
| Cable length | 1 m (40 in) K-type thermocouple cable with standard miniature thermocouple connector and bead termination |
| General Specifications | |
| Safety and compliance | IEC 60825-1 FDA Laser Class II IEC 61326-1 CE Complaint CMC # 01120009 |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Storage temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative humidity | 10% to 90% RH non-condensing up to 30°C (86°F) |
| Operating altitude | 2000 meters above mean sea level |
| Weight | 0.322 kg (0.7099 lb) |
| Power | 2 AA batteries |
| Battery life | 8 hours with laser and backlight on; 100 hours with laser and backlight off, at 100% duty cycle (thermometer continuously on) |
