Description

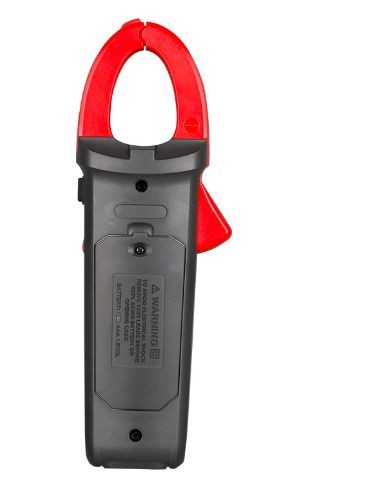

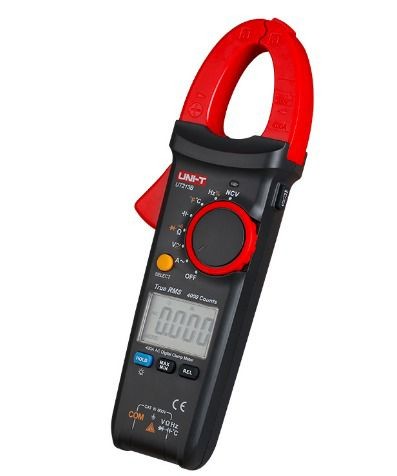

UNI-T UT213B Digital Clamp Meter adalah alat ukur listrik profesional yang sangat cocok bagi teknisi listrik, teknisi HVAC, maupun pengguna industri. Dengan kemampuan pengukuran arus hingga 400A AC, alat ini juga sudah menggunakan True RMS untuk memastikan keakuratan pada sinyal non-linier.
FITUR UNI-T UT213B
- Jangkauan otomatis
- Mode relatif
- Buzzer NCV/kontinuitas
- Penahan data/lampu latar LCD
- Senter
- Indikasi baterai lemah: ≤3,6V
- Proteksi masukan
- Daya mati otomatis
SPESIFIKASI UNI-T UT213B
| Specifications | Range | UT213A | UT213B | UT213C |
| AC current (A) | 400A | ±(1.8%+9) | ±(1.8%+9) | ±(2.5%+5) |
| DC current (A) | 400A | ±(2%+3) | ||
| AC voltage (V) | 600V | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) |
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+3) |
| Resistance (Ω) | 40MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 100μF | ±(4%+5) | ||
| 40mF | ±(4%+5) | ±(4%+5) | ||
| Frequency | 10Hz~1MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) |
| Temperature | -40℃~1000℃ | ±(1%+3) | ±(1%+3) | |
| -40℉~1832℉ | ±(1%+6) | ±(1%+6) | ||
| Features | ||||
| Display count | 4000 | 4000 | 4000 | |
| Auto range | √ | √ | √ | |
| Jaw opening | 30mm | 30mm | 30mm | |
| True RMS | √ | √ | ||
| Diode | Around 1.5V | Around 3.0V | Around 3.0V | |
| NCV | √ | √ | √ | |
| Data hold | √ | √ | √ | |
| Relative mode | √ | √ | √ | |
| MAX/MIN | √ | √ | ||
| LCD backlight | √ | √ | √ | |
| Flashlight | √ | √ | √ | |
| Auto power off | √ | √ | √ | |
| Continuity buzzer | √ | √ | √ | |
| Low battery indication | √ | √ | √ | |
| Input protection | √ | √ | √ | |
| Input impedance for DCV | √ | √ | √ | |
| General Characteristics | ||||
| Power | 1.5V battery (R03) x 3 | |||
| Display | 38mm x 24mm | |||
| Product net weight | Red and grey | |||
| Product color | UT213A/B: 280g; UT213C: 231.7g | |||
| Product size | 220mm x 75mm x 40mm | |||
| Standard accessories | Batteries, test leads (UT213B/UT213C), point contact temperature probe (UT213B/UT213C) | |||
| Standard individual packing | Gift box, carrying bag, English manual | |||
| Standard quantity per carton | 40pcs | |||
| Standard carton measurement | 485mm x 345mm x 385mm | |||
| Standard carton gross weight | UT213A: 18.2kg; UT213B: 19.6kg; UT213C: 19.4kg | |||
Dibekali fitur lengkap seperti pengukuran tegangan AC/DC hingga 600V, resistansi tinggi, NCV (Non-Contact Voltage), serta mendukung fungsi auto range, data hold, dan lampu latar (backlight) untuk penggunaan di lingkungan gelap. Sertifikasi CAT III 600V menjamin keamanan penggunaan dalam instalasi listrik industri menengah ke atas.
