Description

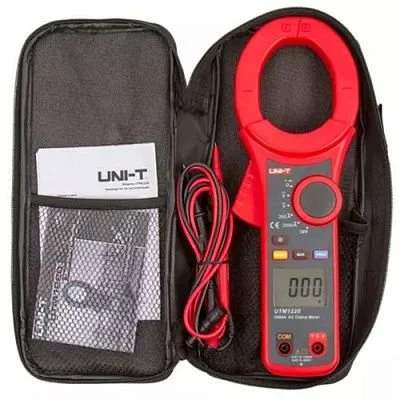

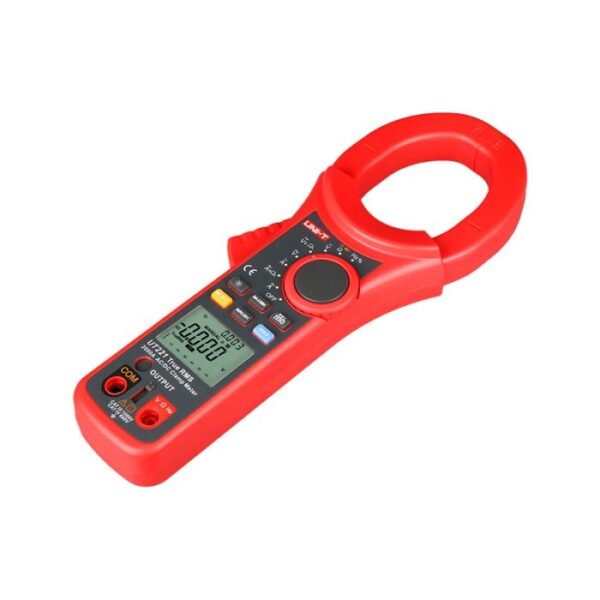

UNI-T UT220 AC/DC Digital Clamp Meter adalah alat ukur listrik profesional yang dirancang untuk aplikasi kelistrikan berat dan penggunaan industri. Seri UT220 mampu mengukur arus hingga 2000A (AC dan beberapa model mendukung DC), sehingga cocok untuk pengukuran beban tinggi, panel distribusi, atau sistem kelistrikan industri.
FITUR UNI-T UT220
- Jangkauan otomatis
- Bel kontinuitas
- MAKS/MIN
- Dioda
- Penahanan data
- Indikasi baterai lemah
SPESIFIKASI UNI-T UT220
| Specifications | Range | UT220 | UT221 | UT222 |
| AC current (A) | 2000A | ±(2.5%+5) | ±(2.5%+5) | |
| 2500A | ±(1.5%+5) | |||
| DC current (A) | 2000A | ±(2.5%+5) | ||
| 2500A | ±(1.5%+5) | |||
| AC voltage (V) | 750V | ±(1.2%+5) | ±(1.2%+5) | |
| 1000V | ±(1%+3) | |||
| DC voltage (V) | 1000V | ±(0.8%+1) | ±(0.8%+1) | ±(0.5%+2) |
| Resistance (Ω) | 20MΩ | ±(1%+2) | ||
| 60MΩ | ±(1%+2) | |||
| 66MΩ | ±(1%+2) | |||
| Capacitance (F) | 60mF | ±(3%+5) | ||
| Frequency (Hz) | 20MHz | ±(0.1%+3) | ||
| 60MHz | ±(0.1%+3) | |||
| Temperature | -40°C~1000°C | ±(1%+10) | ||
| -40°F~1832°F | ±(1%+18) | |||
| Features | ||||
| Display count | 2000 | 6000 | 6000 | |
| Auto range/Diode | √ | √ | √ | |
| Jaw opening | 63mm | 63mm | 63mm | |
| True RMS (AC voltage/AC current) | √ | √ | ||
| Duty cycle | 10%~90% | √ | √ | |
| Continuity buzzer | √ | √ | √ | |
| AC+DC | √ | |||
| Low pass filter | √ | √ | ||
| Inrush current | AC current | √ | √ | |
| Relative mode | √ | √ | ||
| Data hold/MAX | √ | √ | √ | |
| MIN/I-OUT function | √ | √ | ||
| Data storage | 1000 | |||
| Analog bar graph | 66 | 61 | ||
| Full icon display | √ | √ | √ | |
| Low battery indication | √ | √ | √ | |
| Input impedance | ≥10MΩ | √ | √ | √ |
| General Characterisitics | ||||
| Power | 9V battery (6F22) | |||
| Display | 43mm x 30mm | |||
| Product color | Red and grey | |||
| Product net weight | UT220: 389g; UT221/UT222: 726g | |||
| Product size | 298mm x 107mm x 47mm | |||
| Standard accessories | Test leads, output cable (UT221/UT222), thermocouple (UT222) | |||
| Standard individual packing | Gift box, carrying bag (UT220), tool box (UT221/UT222), English manual | |||
| Standard quantity per carton | UT220: 40pcs; UT221/UT222: 5pcs | |||
| Standard carton measurement | UT220: 645mm x 600mm x 330mm; UT221/UT222: 510mm x 375mm x 320mm | |||
| Standard carton gross weight | UT220: 30.1kg; UT221: 12.1kg; UT222: 11.9kg | |||
