Description

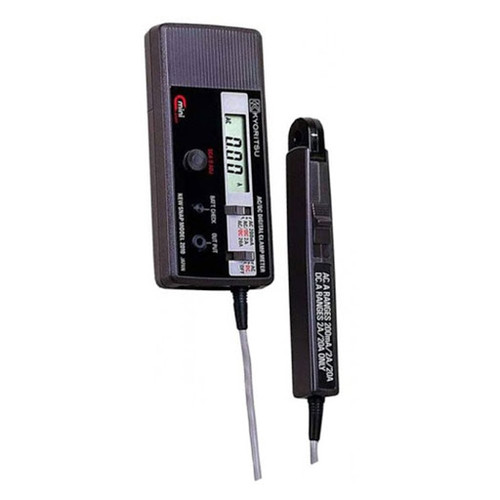

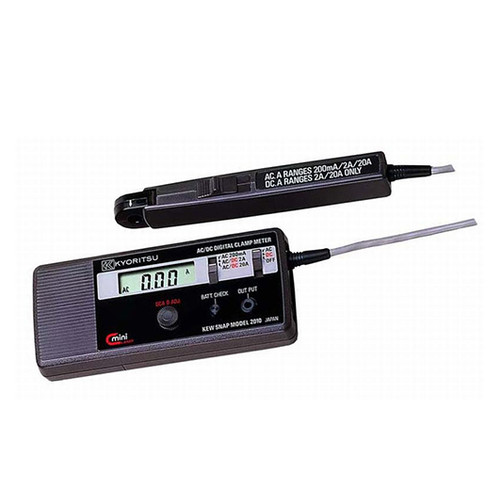

FITUR Kyoritsu 2010
- Sensitivitas tinggi, meteran penjepit AC/DC mini.
- Resolusi minimum 0,1mA untuk arus AC dan resolusi minimum 1mA untuk arus DC.
- Terminal keluaran untuk koneksi perekam.
SPESIFIKASI Kyoritsu 2010
| AC A | 200mA/2/20A ±1%rdg±2dgt [50/60Hz] (200mA) ±1.5%rdg±8dgt [40Hz – 2kHz] (200mA) ±1%rdg±2dgt [50/60Hz] (2A) ±2.5%rdg±10dgt [40Hz – 2kHz] (2/20A) |
|---|---|
| DC A | 2/20A ±1%rdg±2dgt (2A) ±1.5%rdg±4dgt (20A) |
| Conductor size | Ø7.5mm max. |
| Frequency response | DC, 40Hz – 2kHz |
| Output | Recorder : DC200mV against AC200mA/2/20A DC200mV against DC2/20A |
| Power source | 6LR61(9V) × 1 or AC Adaptor |
| Dimensions | 142(L) × 64(W) × 26(D)mm 153(L) × 23(W) × 18(D)mm Clamp Sensor |
| Weight | 220g approx. |
| Included Accessories | 9095 (Carrying Case) Alkaline 6LF22 × 1 Instruction Manual |
| Optional Accessories | 8022 (AC Adaptor) (110V) 8023 (AC Adaptor) (220V) 7256 (Output cord) |
