Description

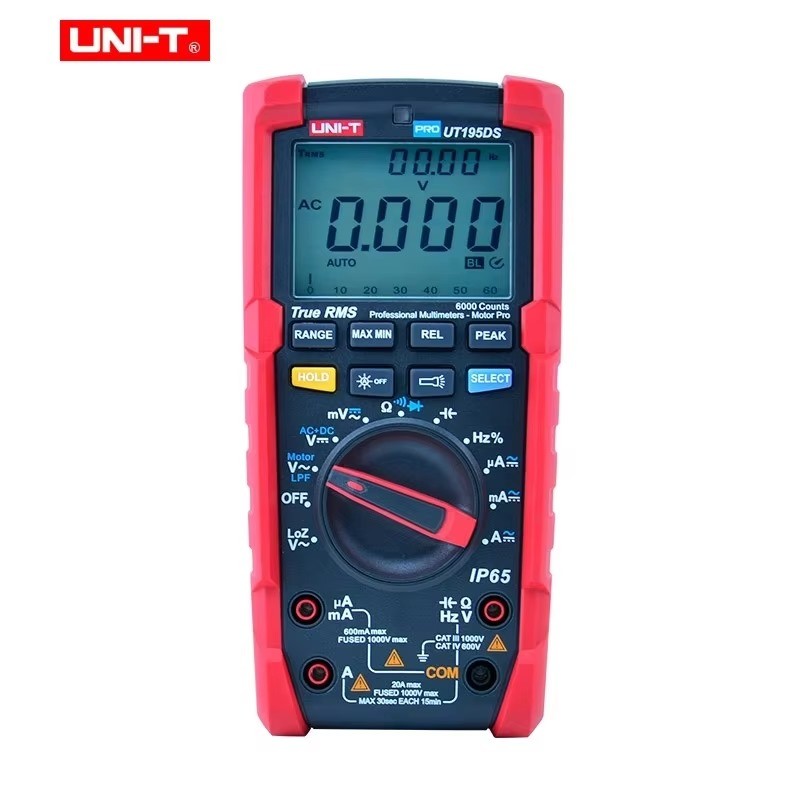

UNI-T UT195DS Digital Multimeter adalah multimeter profesional kelas industri yang dirancang untuk memberikan pengukuran cepat, akurat, dan andal di berbagai kondisi kerja. Dilengkapi teknologi True RMS, alat ini mampu melakukan pengukuran presisi pada sinyal AC/DC, termasuk bentuk gelombang non-sinusoidal.
FITUR UNI-T UT195DS
- Peringkat IP65, tahan jatuh dari ketinggian 2m, CAT III 1000V, CAT IV 600V
- Layar LCD besar dengan kapasitas 6000
- True RMS
- Bandwidth ACV 750V 5kHz
- Senter
- Lampu latar LCD otomatis yang dikontrol oleh sensor cahaya (dapat dimatikan)
- Uji tegangan LoZ, untuk pengukuran tegangan ghost
- Pengukuran arus 20A (maks 30 detik)
- 31 bar analog
SPESIFIKASI UNI-T UT195DS
| Specifications | Range | UT195E | UT195M | UT195DS |
| DC voltage (V) | 1000V | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| AC+DC | 750V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) |
| AC voltage (V) | 600V | ±(1.5%+4) | ||
| LoZ ACV | 600V | ±(2%+3) | ±(2%+3) | ±(2%+3) |
| DC current (A) | 20A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance | 60mF | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| Frequency | 60Hz~10MHz | ±(0.1%+4) | ||
| 60Hz~40MHz | ±(0.1%+4) | ±(0.1%+4) | ||
| Duty cycle | 0.1%~99.9% | ±(2%+5) | N/A | ±(2%+5) |
| Temperature (°C) | -40°C~1000°C | ±(1.5%+4) | ||
| Temperature (°F) | -40°F~1832°F | ±(2%+5) | ||
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Display interface (LCD) | Single | Single | Dual | |
| Measurement sampling rate | times/s | 3 | 3 | 5 |
| Analog bar sampling rate | times/s | 10 | 20 | |
| Analog bar | 31 sections | √ | √ | |
| True RMS | √ | √ | √ | |
| AC voltage frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| AC current frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| 3-phase motor sequence test | 600V | √ | √ | |
| Low pass filter | 1kHz 3dB attenuation | √ | ||
| Diode/Continuity test | 3.5V | 3V | 3V | |
| Peak hold | 250μs | √ | ||
| Auto/Manual range | √ | |||
| Continuity buzzer | √ | |||
| Low battery indication | √ | |||
| Data hold/Auto power off | √ | |||
| MAX/MIN | √ | |||
| Function selection | √ | |||
| Flashlight/Auto backlight | √ | |||
| General Characteristics | ||||
| Power | 9V battery | |||
| LCD size | 66mm x 51mm | |||
| Product color | Red and grey | |||
| Product net weight | 437g | |||
| Product size | 195mm x 95 mm x 58mm | |||

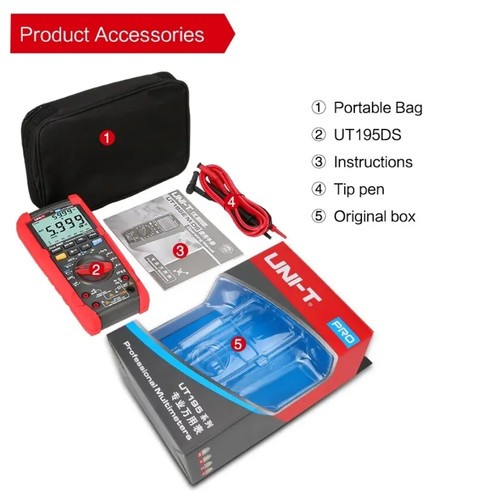

| Standard accessories | Test probes, battery, carrying bag, point contact temperature probe (UT195M) | |||
| Standard individual packing | Gift box, English manual | |||
| Standard quantity per carton | 6pcs | |||
| Standard carton measurement | 580mm x 375mm x 215mm | |||
| Standard carton gross weight | 7.2kg | |||
UT195DS dapat mengukur tegangan, arus, resistansi, kapasitansi, frekuensi, suhu, serta melakukan pengujian kontinuitas dan dioda. Dengan layar LCD besar ber-backlight, desain ergonomis, serta perlindungan tinggi terhadap tegangan berlebih dan lingkungan kerja keras, alat ini sangat cocok digunakan oleh teknisi listrik, insinyur industri, dan tim maintenance.
